Sanha | SKU: 61904115

Sanha NiroSan SF Bend 45°, 1 or 2 Sockets

Name: Sanha NiroSan SF Bend 45°, 1 or 2 Sockets
Brand: Sanha
SKU: 61904115
Price: 15.99 EUR
Availability: InStock

15^{99 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Version

Size

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Sanha NiroSan SF Bend 45°, 1 or 2 Sockets combines the following versions in one product: 2 sockets, 1 socket (socket x spigot). Select the required version under Version and then the matching variant under Size. The details for each version are given below.

The versions in detail

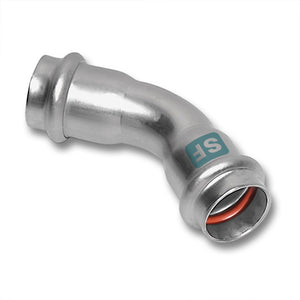

2 sockets: Sanha NiroSan SF Bend 45°, 2 Sockets is a 45° bend with universal press ends on both sides. The item belongs to the NiroSan SF press fitting system (series 19000) made of stainless steel. According to Sanha, the fittings and pipes of this system are free from silicone and other substances that impair paint wetting.

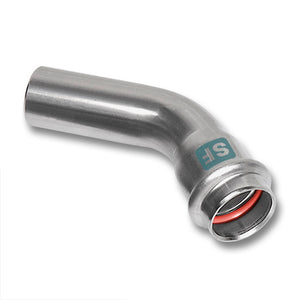

1 socket (socket x spigot): Sanha NiroSan SF Bend 45°, 1 Socket is a 45° bend with one universal press end and one male plain end. The item belongs to the NiroSan SF press fitting system (series 19000) made of stainless steel. According to Sanha, the fittings and pipes of this system are free from silicone and other substances that impair paint wetting.

Technical data

Material	Cr-Ni-Mo steel, material no. 1.4404, free from substances that impair paint wetting (according to Sanha)
Sealing ring	FKM, red, factory-fitted
Nominal pressure	PN 40 for d 15 to 22 mm, PN 25 for d 28 to 35 mm, PN 16 for d 42 to 108 mm (according to the Sanha installation information)
Max. continuous temperature	-20 to 160 °C depending on the medium (according to Sanha)
Testing	connection tested in accordance with DVGW W 534 (according to Sanha)
Press tool	up to 54 mm with press jaws of the SA, V or M original profile (according to Sanha)
Dimensions	d 15 to 108 mm
Suitable pipes	NiroSan SF system pipes according to EN 10312 (Sanha recommendation)

Data per version:

Feature	2 sockets	1 socket (socket x spigot)
System	NiroSan SF, series 19000, catalogue number 19041	NiroSan SF, series 19000, catalogue number 19040
Design	bend 45°, universal press ends on both sides	bend 45° with universal press end and male plain end

Note on variants

Select version and size. Not every combination is available.

Version	Size	Item number	d	L	z	L1	L2
2 Muffen	108.0	619041108	108	123	52
2 Muffen	15	61904115	15	37	11
2 Muffen	18	61904118	18	39	13
2 Muffen	22	61904122	22	48	20
2 Muffen	28	61904128	28	53	24
2 Muffen	35	61904135	35	57	27
2 Muffen	42	61904142	42	68	30
2 Muffen	54	61904154	54	82	38
2 Muffen	76.1	61904176	76.1	89	39
2 Muffen	88.9	61904189	88.9	101	43
1 Muffe (Muffe x Einsteckende)	108.0	619040108	108		53	124	150
1 Muffe (Muffe x Einsteckende)	15	61904015	15		12	37	47
1 Muffe (Muffe x Einsteckende)	18	61904018	18		13	39	48
1 Muffe (Muffe x Einsteckende)	22	61904022	22		20	48	56
1 Muffe (Muffe x Einsteckende)	28	61904028	28		24	53	60
1 Muffe (Muffe x Einsteckende)	35	61904035	35		27	57	64
1 Muffe (Muffe x Einsteckende)	42	61904042	42		30	68	79
1 Muffe (Muffe x Einsteckende)	54	61904054	54		38	82	89
1 Muffe (Muffe x Einsteckende)	76.1	61904076	76.1		39	89	108
1 Muffe (Muffe x Einsteckende)	88.9	61904089	88.9		44	101	122

Features

Area of application according to Sanha: media transport where silicone and substances that impair paint wetting (LABS) must be excluded.
Marking on the fitting according to Sanha: manufacturer, dimension, approval mark and blue SF marking.
For technical gases, the maximum operating pressure is 16 bar according to Sanha.
