Sanha NiroSan Industry Bend 45°, 1 or 2 Sockets

Name: Sanha NiroSan Industry Bend 45°, 1 or 2 Sockets
Brand: Sanha
SKU: 61804115
Price: 14.99 EUR
Availability: InStock

14^{99 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Version

Size

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Sanha NiroSan Industry Bend 45°, 1 or 2 Sockets combines the following versions in one product: 2 sockets, 1 socket (socket x spigot). Select the required version under Version and then the matching variant under Size. The details for each version are given below.

The versions in detail

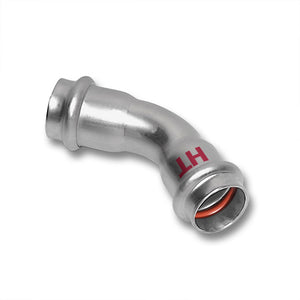

2 sockets: Sanha NiroSan Industry Bend 45°, 2 Sockets is a 45° bend with universal press ends on both sides. The item belongs to the NiroSan Industry press fitting system (series 18000) made of stainless steel.

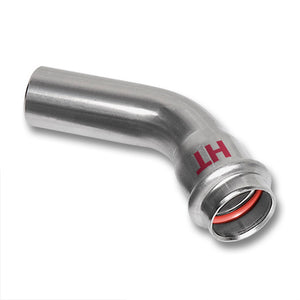

1 socket (socket x spigot): Sanha NiroSan Industry Bend 45°, 1 Socket is a 45° bend with one universal press end and one male plain end. The item belongs to the NiroSan Industry press fitting system (series 18000) made of stainless steel.

Technical data

Material	Cr-Ni-Mo steel, material no. 1.4404 (according to Sanha)
Sealing ring	FKM, red, factory-fitted
Nominal pressure	PN 40 for d 15 to 22 mm, PN 25 for d 28 to 35 mm, PN 16 for d 42 to 108 mm (according to the Sanha installation information)
Max. continuous temperature	-20 to 160 °C depending on the medium, briefly up to 280 °C (according to Sanha)
Testing	connection tested in accordance with DVGW W 534 (according to Sanha)
Press tool	up to 54 mm with press jaws of the SA, V or M original profile (according to Sanha)
Dimensions	d 15 to 108 mm
Suitable pipes	NiroSan, NiroSan ECO and NiroSan F system pipes according to EN 10312 (Sanha recommendation)

Data per version:

Feature	2 sockets	1 socket (socket x spigot)
System	NiroSan Industry, series 18000, catalogue number 18041	NiroSan Industry, series 18000, catalogue number 18040
Design	bend 45°, universal press ends on both sides	bend 45° with universal press end and male plain end

Note on variants

Select version and size. Not every combination is available.

Version	Size	Item number	d	L	z	L1	L2
2 Muffen	108.0	618041108	108	123	52
2 Muffen	15	61804115	15	37	11
2 Muffen	18	61804118	18	39	13
2 Muffen	22	61804122	22	48	20
2 Muffen	28	61804128	28	53	24
2 Muffen	35	61804135	35	57	27
2 Muffen	42	61804142	42	68	30
2 Muffen	54	61804154	54	82	38
2 Muffen	76.1	61804176	76.1	89	39
2 Muffen	88.9	61804189	88.9	101	43
1 Muffe (Muffe x Einsteckende)	108.0	618040108	108		53	124	150
1 Muffe (Muffe x Einsteckende)	15	61804015	15		12	37	47
1 Muffe (Muffe x Einsteckende)	18	61804018	18		13	39	48
1 Muffe (Muffe x Einsteckende)	22	61804022	22		20	48	56
1 Muffe (Muffe x Einsteckende)	28	61804028	28		24	53	60
1 Muffe (Muffe x Einsteckende)	35	61804035	35		27	57	64
1 Muffe (Muffe x Einsteckende)	42	61804042	42		30	68	79
1 Muffe (Muffe x Einsteckende)	54	61804054	54		38	82	89
1 Muffe (Muffe x Einsteckende)	76	61804076	76.1		39	89	108
1 Muffe (Muffe x Einsteckende)	88.9	61804089	88.9		44	101	122

Features

Areas of application according to the Sanha installation information: compressed air, technical gases, solar systems, district heating, saturated steam systems, heating oil and fuels, and shipbuilding.
Marking on the fitting according to Sanha: manufacturer, dimension, approval mark and red HT marking.
For technical gases, the maximum operating pressure is 16 bar according to Sanha.
General building authority approval / general type approval Z-38.4-280 of the DIBt for press connections of the NiroSan Press Industry system, series S18000, for single-wall pipelines in installations handling heating oil and diesel fuel, valid until 31.10.2030.
TÜV component approval TÜV.K.23-001 for the press fitting connection of Sanha press fitting and system pipe (types include NiroSan Press Industry), valid until 30.11.2028.
VdS approval G 4090010 for the NiroSan Press Industry series 18000 pipe system in stationary water extinguishing systems, valid until 01.03.2030. It covers stainless steel press fittings 1.4404 from 22 to 88.9 mm with red FKM sealing ring and, according to the approval, applies to wet and dry systems behind the alarm valve station, subject to the restrictions stated there.
