Frico Thermowarm TWS200 Convector, Surface Temperature 60 °C

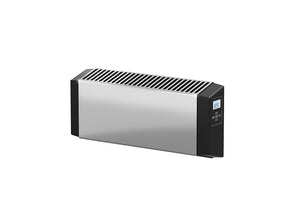

Frico Thermowarm TWS200 is an electric convector with grey flocked front panel (velour) and built-in control with digital display. According to Frico, the Thermowarm TWS series is intended for industrial and public buildings, for example changing rooms, warehouses, shops and toilets.

According to Frico, the TWS200 has a maximum surface temperature of 60 °C and is therefore suitable for day-care centres and bathrooms. Available are TWSE205 and TWSE210 for 230 V and TWSD210 for 400 V 2~.

Select output and voltage.

• Built-in control according to the Ecodesign Regulation (EU) 2015/1188 with electronic room temperature control and weekly programme, open window detection and adaptive start control.
• Digital display with keypad; screen lock as child lock.
• Ribbed fins and tubular heating elements; side parts made of impact-resistant thermoplastic.
• Overheat protection, reset via a button under the screw cover on the side.
• According to Frico a protective cover for display and keypad is available as an accessory (TWSL).
• According to Frico the front plate can be painted in any colour or supplied with self-adhesive film.

The convector is fixed horizontally to the wall with four screws using the pre-mounted wall bracket; observe the minimum distances given in the manual. Installation is carried out by a qualified electrician with an upstream all-pole switch with at least 3 mm contact gap. According to the manual a 300 mA residual current device is required for fire protection. The unit must not be covered.
