Blauberg Ventilatoren GmbH | SKU: 8061592

Blauberg Roof Fan Accessories

Name: Blauberg Roof Fan Accessories
Brand: Blauberg Ventilatoren GmbH
SKU: 8061592
Price: 72.24 EUR
Availability: InStock

72^{24 €} ~~83^{99 €}~~

Tax included Shipping calculated at checkout.

● Delivery time: 2 to 3 weeks
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Blauberg Roof Fan Accessories: Blauberg accessories for the Tower roof fans: counter flange, non-return damper, anti-vibration connector and mounting frame. Select the part and the size (fan size).

Technical data

Data per variant:

Part	Size	Article number	Design	Vibration-damping material	For fan size	Ø D, mm	Ø D1, mm	Ø D2, mm	Ø d, mm	L, mm	Weight, kg	Material	Length L	Suitable for	Weight	Type	Material	Compatible fan sizes	B	H	Type	Version in the shop	Compatible fan sizes

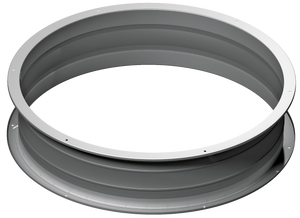

VDL anti-vibration connector	220-225	8061592	two galvanised steel flanges joined by vibration-damping material	polyethylene fabric reinforced with nylon	190, 220, 225	183	210	235	7	200	0.8	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a
VDL anti-vibration connector	250-315	8038525	two galvanised steel flanges joined by vibration-damping material	polyethylene fabric reinforced with nylon	250, 280, 310	256	285	308	7	200	1.2	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a
VDL anti-vibration connector	355-500	8038532	two galvanised steel flanges joined by vibration-damping material	polyethylene fabric reinforced with nylon	355, 400, 450, 500	402	430	484	9	200	1.75	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a
VDL anti-vibration connector	560	8078002	two galvanised steel flanges joined by vibration-damping material	polyethylene fabric reinforced with nylon	560, 630	567	605	639	9	200	2.62	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a
VDL anti-vibration connector	710	8094149	two galvanised steel flanges joined by vibration-damping material	polyethylene fabric reinforced with nylon	710	630	674	705	10	260	7.1	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a

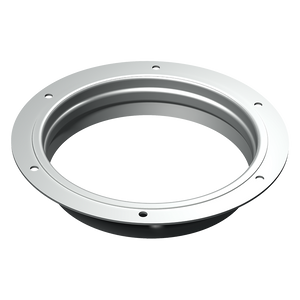

FDL counter flange	220-225	8061608	n/a	n/a	190, 220, 225	183	210	235	7	n/a	0.34	galvanised steel	40 mm	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a
FDL counter flange	250-315	8028182	n/a	n/a	250, 280, 310	256	285	306	7	n/a	0.52	galvanised steel	40 mm	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a
FDL counter flange	355-500	8038549	n/a	n/a	355, 400, 450, 500	402	430	464	9	n/a	1.05	galvanised steel	40 mm	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a
FDL counter flange	560	8115868	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	galvanised steel	n/a	roof fans Tower-H, Tower-V, Tower-H EC, Tower-V EC of standard sizes 560 and 630	1.6 kg	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a
FDL counter flange	710	8078026	n/a	n/a	710	634	674	708	9	n/a	3.15	galvanised steel	40 mm	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a

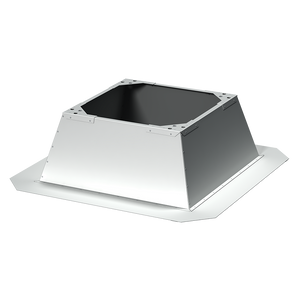

MRDL mounting frame	220-225	8053771	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	Tower-H, Tower-V, Tower-H EC, Tower-V EC, Tower-A, Tower-AL	10.4 kg	Mounting frame for roof fans	Galvanised steel	190, 220, 225	720	300.5	n/a	n/a	n/a
MRDL mounting frame	250-315	8053436	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	Tower-H, Tower-V, Tower-H EC, Tower-V EC, Tower-A, Tower-AL	12.0 kg	Mounting frame for roof fans	Galvanised steel	250, 280, 310	810	300.5	n/a	n/a	n/a
MRDL mounting frame	355-400	8053788	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	Tower-H, Tower-V, Tower-H EC, Tower-V EC, Tower-A, Tower-AL	16.4 kg	Mounting frame for roof fans	Galvanised steel	355, 400	980	300.5	n/a	n/a	n/a
MRDL mounting frame	450-500	8042119	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	Tower-H, Tower-V, Tower-H EC, Tower-V EC, Tower-A, Tower-AL	16.9 kg	Mounting frame for roof fans	Galvanised steel	450, 500	997	300.5	n/a	n/a	n/a
MRDL mounting frame	560	8053795	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	Tower-H, Tower-V, Tower-H EC, Tower-V EC, Tower-A, Tower-AL	26.7 kg	Mounting frame for roof fans	Galvanised steel	560	1180	300.5	n/a	n/a	n/a
MRDL mounting frame	630	8052668	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	Tower-H, Tower-V, Tower-H EC, Tower-V EC, Tower-A, Tower-AL	78.2 kg	Mounting frame for roof fans	Galvanised steel	630	1212	600.0	n/a	n/a	n/a
MRDL mounting frame	710-800	8052675	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	Tower-H, Tower-V, Tower-H EC, Tower-V EC, Tower-A, Tower-AL	81.0 kg	Mounting frame for roof fans	Galvanised steel	710, 800	1262	600.0	n/a	n/a	n/a
MRDL mounting frame	900	8093944	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	Tower-H, Tower-V, Tower-H EC, Tower-V EC, Tower-A, Tower-AL	98.4 kg	Mounting frame for roof fans	Galvanised steel	900	1512	650.0	n/a	n/a	n/a
MRDL mounting frame	1000-1100	8093951	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	Tower-H, Tower-V, Tower-H EC, Tower-V EC, Tower-A, Tower-AL	117.1 kg	Mounting frame for roof fans	Galvanised steel	1000, 1100	1712	730.0	n/a	n/a	n/a
MRIDL mounting frame, insulated	220-225	8061615	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	Tower-H, Tower-V, Tower-H EC, Tower-V EC, Tower-A, Tower-AL	13.8 kg	Mounting frame for roof fans, insulated	Galvanised steel	190, 220, 225	720	300.5	n/a	n/a	n/a
MRIDL mounting frame, insulated	250-315	8038488	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	Tower-H, Tower-V, Tower-H EC, Tower-V EC, Tower-A, Tower-AL	16.9 kg	Mounting frame for roof fans, insulated	Galvanised steel	250, 280, 310	810	300.5	n/a	n/a	n/a
MRIDL mounting frame, insulated	355-400	8038495	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	Tower-H, Tower-V, Tower-H EC, Tower-V EC, Tower-A, Tower-AL	20.3 kg	Mounting frame for roof fans, insulated	Galvanised steel	355, 400	980	300.5	n/a	n/a	n/a
MRIDL mounting frame, insulated	450-500	8042126	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	Tower-H, Tower-V, Tower-H EC, Tower-V EC, Tower-A, Tower-AL	21.2 kg	Mounting frame for roof fans, insulated	Galvanised steel	450, 500	997	300.5	n/a	n/a	n/a
MRIDL mounting frame, insulated	560	8078033	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	Tower-H, Tower-V, Tower-H EC, Tower-V EC, Tower-A, Tower-AL	35.7 kg	Mounting frame for roof fans, insulated	Galvanised steel	560	1180	300.5	n/a	n/a	n/a
MRIDL mounting frame, insulated	630	8078040	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	Tower-H, Tower-V, Tower-H EC, Tower-V EC, Tower-A, Tower-AL	85.5 kg	Mounting frame for roof fans, insulated	Galvanised steel	630	1212	600.0	n/a	n/a	n/a
MRIDL mounting frame, insulated	710-800	8078057	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	Tower-H, Tower-V, Tower-H EC, Tower-V EC, Tower-A, Tower-AL	89.0 kg	Mounting frame for roof fans, insulated	Galvanised steel	710, 800	1262	600.0	n/a	n/a	n/a
MRIDL mounting frame, insulated	900	8093982	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	Tower-H, Tower-V, Tower-H EC, Tower-V EC, Tower-A, Tower-AL	113.0 kg	Mounting frame for roof fans, insulated	Galvanised steel	900	1512	650.0	n/a	n/a	n/a
MRIDL mounting frame, insulated	1000-1100	8093999	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	Tower-H, Tower-V, Tower-H EC, Tower-V EC, Tower-A, Tower-AL	140.6 kg	Mounting frame for roof fans, insulated	Galvanised steel	1000, 1100	1712	730.0	n/a	n/a	n/a

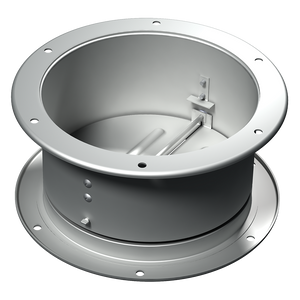

KDL non-return damper	220-225	8061622	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	housing and rotating blade made of galvanised steel	n/a	Tower-H, Tower-V, Tower-H EC, Tower-V EC, size per version	1 kg	n/a	n/a	n/a	n/a	n/a	Check valve for roof fans, gravity-operated	220-225 mm	190, 220, 225
KDL non-return damper	250-315	8038501	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	housing and rotating blade made of galvanised steel	n/a	Tower-H, Tower-V, Tower-H EC, Tower-V EC, size per version	1.7 kg	n/a	n/a	n/a	n/a	n/a	Check valve for roof fans, gravity-operated	250-315 mm	250, 280, 310
KDL non-return damper	355-500	8038518	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	housing and rotating blade made of galvanised steel	n/a	Tower-H, Tower-V, Tower-H EC, Tower-V EC, size per version	3.5 kg	n/a	n/a	n/a	n/a	n/a	Check valve for roof fans, gravity-operated	355-500 mm	355, 400, 450, 500
KDL non-return damper	560	8077999	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	housing and rotating blade made of galvanised steel	n/a	Tower-H, Tower-V, Tower-H EC, Tower-V EC, size per version	7.3 kg	n/a	n/a	n/a	n/a	n/a	Check valve for roof fans, gravity-operated	560 mm	560, 630
KDL non-return damper	710	8094132	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	housing and rotating blade made of galvanised steel	n/a	Tower-H, Tower-V, Tower-H EC, Tower-V EC, size per version	14.1 kg	n/a	n/a	n/a	n/a	n/a	Check valve for roof fans, gravity-operated	710 mm	710

Note on variants

Select the part and size. The article number and technical data of each variant are listed in the table under Technical data; the price depends on the selected variant.
