Blauberg Ventilatoren GmbH | SKU: 8048951

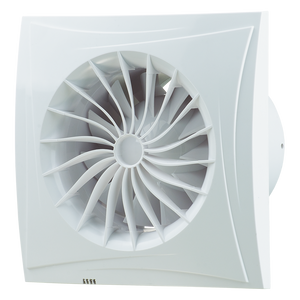

Blauberg Sileo Small Room Fan

Name: Blauberg Sileo Small Room Fan
Brand: Blauberg Ventilatoren GmbH
SKU: 8048951
Price: 139.0 EUR
Availability: InStock

139^{00 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 working days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original manufacturer unit, CE marked
✓ Quiet operation with the right sizing
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Expert advice on choosing the right unit

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Blauberg Sileo Small Room Fan: Blauberg Sileo small room fans for bathroom, toilet and kitchen. Selectable are model (Sileo, Sileo DC with EC motor, Sileo V2), nominal size and version (standard, with overrun timer T, with humidity sensor H, with infrared motion sensor IR, 12 V; max denotes the higher-performance version).

Technical data

Degree of protection	IP45
Housing and impeller	plastic

Data per variant:

Model	Nominal size	Version	Article number	Spigot size	Maximum airflow	Speed	Sound pressure level LpA at 3 m	Ambient temperature	Weight	Function according to the manufacturer	Power supply	Rated power	Current consumption	Speeds	Motor
Sileo	100	12 V	8048951	100 mm	97 m³/h	2165 min⁻¹	25 dB(A)	1 to 40 °C	0.55 kg	No timer; supplied with 12 V extra-low voltage. According to the manufacturer, connection to 220 V / 50 Hz requires an additional step-down converter (for example series AT-25 220/12-25, not included).	n/a	n/a	n/a	n/a	n/a
Sileo	100	Standard	8010620	100 mm	97 m³/h	n/a	25 dB(A)	1 to 40 °C	0.55 kg	n/a	1 phase, 220 to 240 V	7.5 W	n/a	n/a	n/a
Sileo	100	with humidity sensor and overrun timer (H)	8010637	100 mm	97 m³/h	2165 min⁻¹	25 dB(A)	1 to 40 °C	0.55 kg	Humidity sensor with adjustable switch-on humidity from 60 to 90% and run-on timer with adjustable run-on time of 2 to 30 min	n/a	n/a	n/a	n/a	n/a
Sileo	100	with infrared motion sensor (IR)	8010644	100 mm	97 m³/h	2165 min⁻¹	25 dB(A)	1 to 40 °C	0.55 kg	Motion sensor with a detection range of 1 to 4 m and a viewing angle of up to 100°; after the last detected movement the fan runs on for 2 to 30 min (adjustable)	n/a	n/a	n/a	n/a	n/a
Sileo	100	with overrun timer (T)	8010682	100 mm	97 m³/h	2165 min⁻¹	25 dB(A)	1 to 40 °C	0.55 kg	Run-on timer: adjustable run-on time of 2 to 30 min	n/a	n/a	n/a	n/a	n/a
Sileo	125	Standard	8010699	125 mm	185 m³/h	n/a	32 dB(A)	1 to 40 °C	0.78 kg	n/a	1 phase, 220 to 240 V	17 W	n/a	n/a	n/a
Sileo	125	with humidity sensor and overrun timer (H)	8010705	125 mm	185 m³/h	2100 min⁻¹	32 dB(A)	1 to 40 °C	0.78 kg	Humidity sensor with adjustable switch-on humidity from 60 to 90% and run-on timer with adjustable run-on time of 2 to 30 min	1 phase, 220 to 240 V, 50 Hz	17 W	0.11 A	n/a	n/a
Sileo	125	with infrared motion sensor (IR)	8010712	125 mm	185 m³/h	2100 min⁻¹	32 dB(A)	1 to 40 °C	0.78 kg	Motion sensor with a detection range of 1 to 4 m and a viewing angle of up to 100°; after the last detected movement the fan runs on for 2 to 30 min (adjustable)	1 phase, 220 to 240 V, 50 Hz	17 W	0.11 A	n/a	n/a
Sileo	125	with overrun timer (T)	8010750	125 mm	185 m³/h	2100 min⁻¹	32 dB(A)	1 to 40 °C	0.78 kg	Run-on timer: adjustable run-on time of 2 to 30 min	1 phase, 220 to 240 V, 50 Hz	17 W	0.11 A	n/a	n/a
Sileo	150	Standard	8010767	150 mm	220 / 315 m³/h	n/a	28 / 33 dB(A)	1 to 40 °C	1.33 kg	n/a	1 phase, 220 to 240 V	17 / 19 W (speed 1 / 2)	n/a	n/a	n/a
Sileo	150	Standard, max	8010842	150 mm	280 / 370 m³/h	n/a	32 / 38 dB(A)	1 to 40 °C	1.33 kg	n/a	1 phase, 220 to 240 V	19 / 22 W (speed 1 / 2)	n/a	n/a	n/a
Sileo	150	with humidity sensor and overrun timer (H)	8010781	150 mm	n/a	n/a	n/a	1 to 40 °C	1.33 kg	Humidity sensor with adjustable switch-on humidity from 60 to 90% and run-on timer with adjustable run-on time of 2 to 30 min	1 phase, 220 to 240 V, 50/60 Hz	n/a	n/a	2	n/a
Sileo	150	with humidity sensor and overrun timer (H), max	8010859	150 mm	n/a	n/a	n/a	1 to 40 °C	1.33 kg	Humidity sensor with adjustable switch-on humidity from 60 to 90% and run-on timer with adjustable run-on time of 2 to 30 min	1 phase, 220 to 240 V, 50/60 Hz	n/a	n/a	2	n/a
Sileo	150	with infrared motion sensor (IR)	8010798	150 mm	n/a	n/a	n/a	1 to 40 °C	1.33 kg	Motion sensor with a detection range of 1 to 4 m and a viewing angle of up to 100°, run-on time adjustable from 2 to 30 min	1 phase, 220 to 240 V, 50/60 Hz	n/a	n/a	2	n/a
Sileo	150	with infrared motion sensor (IR), max	8010866	150 mm	n/a	n/a	n/a	1 to 40 °C	1.33 kg	n/a	1 phase, 220 to 240 V, 50/60 Hz	n/a	n/a	2	n/a
Sileo	150	with overrun timer (T)	8010835	150 mm	n/a	n/a	n/a	1 to 40 °C	1.33 kg	Run-on timer: adjustable run-on time of 2 to 30 min	1 phase, 220 to 240 V, 50/60 Hz	n/a	n/a	2	n/a
Sileo	150	with overrun timer (T), max	8010903	150 mm	n/a	n/a	n/a	1 to 40 °C	1.33 kg	Run-on timer: adjustable run-on time of 2 to 30 min	1 phase, 220 to 240 V, 50/60 Hz	n/a	n/a	2	n/a
Sileo DC	100	with humidity sensor and overrun timer (H)	8044601	100 mm	n/a	n/a	n/a	1 to 40 °C	0.55 kg	Humidity sensor (set point via DIP switch 60, 70, 80 or 90%) and run-on timer	1 phase, 220 to 240 V, 50/60 Hz	n/a	n/a	n/a	DC motor, 2 speeds
Sileo DC	100	with infrared motion sensor (IR)	8056420	100 mm	n/a	n/a	n/a	1 to 40 °C	0.55 kg	n/a	1 phase, 220 to 240 V, 50/60 Hz	n/a	n/a	n/a	DC motor, 2 speeds
Sileo DC	100	with overrun timer (T)	8052576	100 mm	n/a	n/a	n/a	1 to 40 °C	0.55 kg	Run-on timer: start via an external switch (for example a light switch), run-on time via DIP switch off, 5, 15 or 30 min	1 phase, 220 to 240 V, 50/60 Hz	n/a	n/a	n/a	DC motor, 2 speeds
Sileo V2	100	Standard	8010910	100 mm	n/a	n/a	n/a	1 to 45 °C	0.55 kg	Basic version without run-on timer and without sensor	1 phase, 220 to 240 V, 50 Hz	n/a	n/a	2	n/a
Sileo V2	100	with humidity sensor and overrun timer (H)	8012853	100 mm	n/a	n/a	n/a	1 to 45 °C	0.55 kg	Humidity sensor with adjustable switch-on humidity from 60 to 90% and run-on timer (2 to 30 min). According to the manufacturer, version H runs continuously at the lowest speed and switches to speed 2 when required.	1 phase, 220 to 240 V, 50 Hz	n/a	n/a	2	n/a
Sileo V2	100	with overrun timer (T)	8012846	100 mm	n/a	n/a	n/a	1 to 45 °C	0.55 kg	Run-on timer: adjustable run-on time of 2 to 30 min	1 phase, 220 to 240 V, 50 Hz	n/a	n/a	2	n/a

Applies to Sileo / 150 / with humidity sensor and overrun timer (H), Sileo / 150 / with humidity sensor and overrun timer (H), max, Sileo / 150 / with infrared motion sensor (IR), Sileo / 150 / with overrun timer (T) and Sileo / 150 / with overrun timer (T), max:

Model	Speed	Rated power	Current consumption	Airflow	Rotational speed	Sound pressure level LpA at 3 m
Sileo 150	1 / 2	17 / 19 W	0.08 / 0.09 A	220 / 315 m³/h	1525 / 2060 min⁻¹	28 / 33 dB(A)
Sileo Max 150	1 / 2	19 / 22 W	0.09 / 0.1 A	280 / 370 m³/h	1770 / 2290 min⁻¹	32 / 38 dB(A)

Applies to Sileo DC / 100 / with humidity sensor and overrun timer (H), Sileo DC / 100 / with infrared motion sensor (IR) and Sileo DC / 100 / with overrun timer (T):

Speed	Power consumption	Current consumption	Airflow	Rotational speed	Sound pressure level LpA at 3 m
1	1.5 W	0.063 A	70 m³/h	1850 min⁻¹	22 dB(A)
2	3.5 W	0.137 A	101 m³/h	2650 min⁻¹	27 dB(A)

Applies to Sileo / 100 / 12 V, Sileo / 100 / with humidity sensor and overrun timer (H), Sileo / 100 / with infrared motion sensor (IR) and Sileo / 100 / with overrun timer (T):

Version	Power supply	Rated power	Current consumption
T, H, IR	1 phase, 220 to 240 V, 50 Hz	7.5 W	0.049 A
12	12 V, 50 Hz	8.5 W	1.03 A

Applies to Sileo V2 / 100 / Standard, Sileo V2 / 100 / with humidity sensor and overrun timer (H) and Sileo V2 / 100 / with overrun timer (T):

Speed	Rated power	Current consumption	Airflow	Rotational speed	Sound pressure level LpA at 3 m
1	4.5 W	0.029 A	60 m³/h	1850 min⁻¹	22 dB(A)
2	7 W	0.052 A	90 m³/h	2400 min⁻¹	25 dB(A)

Applies to Sileo / 150 / with infrared motion sensor (IR), max:

Speed	Rated power	Current consumption	Airflow	Sound pressure level LpA at 3 m
1	19 W	0.09 A	280 m³/h	32 dB(A)
2	22 W	0.1 A	370 m³/h	38 dB(A)

Features

Non-return flap against backflow.
Motor mounted on vibration dampers (manufacturer's information).

Note on variants

Select the model, nominal size and version. The article number and technical data of each variant are listed in the table under Technical data; the price depends on the selected variant.
