Blauberg Ventilatoren GmbH | SKU: 8017032

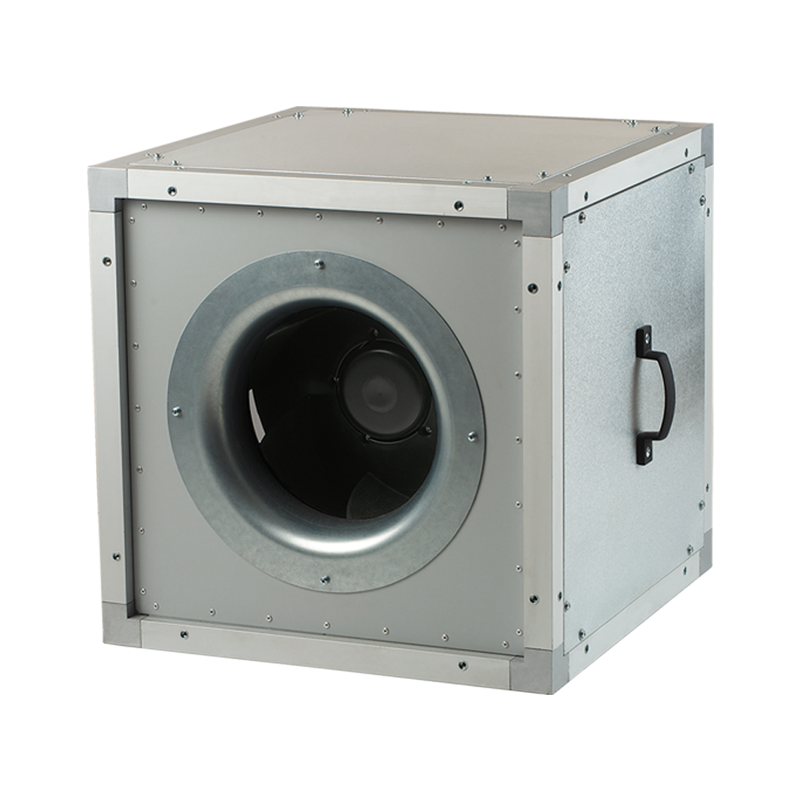

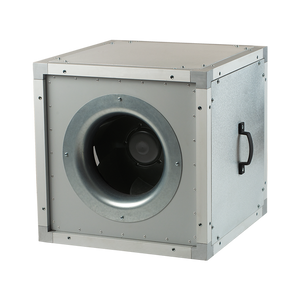

Blauberg Iso-V Duct Fan

Name: Blauberg Iso-V Duct Fan
Brand: Blauberg Ventilatoren GmbH
SKU: 8017032
Price: 1319.27 EUR
Availability: InStock

1.319^{27 €} ~~1.792^{49 €}~~

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original manufacturer unit, CE marked
✓ Quiet operation with the right sizing
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Expert advice on choosing the right unit

Connection diameter (Ø mm)

Motor type

Performance

Product variants

Request a quote

For business customers, larger quantities or projects, we will be happy to prepare a quote for you.

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Blauberg Iso-V Duct Fan: Blauberg Iso-V sound-insulated duct fans, either with asynchronous motor or EC motor. Selectable are connection diameter, motor type and performance.

Technical data

According to the data sheet, housing size A is the edge length of the square housing (matching the AKV connector of the same size).

Data per variant:

Connection diameter (Ø mm)	Motor type	Performance	Article number	Degree of protection	Power supply	Power consumption	Current consumption	Max. airflow 90° / straight	Speed	Sound pressure LpA at 3 m	Medium temperature	Housing size A	Weight
315 mm	EC motor	Standard	8017032	IPX4, motor IP54	1 phase, 230 V, 50/60 Hz	150 W	1.23 A	2370 / 2252 m³/h	1600 min⁻¹	35 dB(A)	-40 to 80 °C	500 mm	25 kg
355 mm	4-pole (230 V single-phase)	Standard	8016905	IPX4, motor IP44	1 phase, 230 V, 50 Hz	245 W	1.12 A	2890 / 2650 m³/h	1420 min⁻¹	54 dB(A)	-25 to 50 °C	500 mm	25 kg
355 mm	4-pole (400 V three-phase)	Standard	8016899	IPX4, motor IP44	3 phases, 400 V, 50/60 Hz	230 W	0.52 A	2660 / 2380 m³/h	1400 min⁻¹	53 dB(A)	-25 to 70 °C	500 mm	25 kg
355 mm	EC motor	Standard	8017049	IPX4, motor IP54	1 phase, 230 V, 50/60 Hz	250 W	1.1 A	3830 / 3639 m³/h	1450 min⁻¹	44 dB(A)	-25 to 60 °C	500 mm	29 kg
400 mm	4-pole (230 V single-phase)	Standard	8016936	IPX4, motor IP44	1 phase, 230 V, 50/60 Hz	480 W	2.4 A	3750 / 3535 m³/h	1370 min⁻¹	51 dB(A)	-40 to 80 °C	670 mm	39 kg
400 mm	4-pole (400 V three-phase)	Standard	8016929	IPX4, motor IP44	3 phases, 400 V, 50/60 Hz	515 W (delta) / 385 W (star)	1.41 A / 0.7 A	3950 / 3740 m³/h (delta); 3340 / 3110 m³/h (star)	1415 / 1235 min⁻¹	51 / 47 dB(A)	-40 to 60 °C (delta); -40 to 80 °C (star)	670 mm	39 kg
400 mm	EC motor	Standard	8017056	IPX4, motor IP54	1 phase, 230 V, 50/60 Hz	500 W	2.2 A	5660 / 5377 m³/h	1500 min⁻¹	39 dB(A)	-25 to 50 °C	670 mm	42 kg
450 mm	4-pole (230 V single-phase)	Standard	8016967	IPX4, motor IP44	1 phase, 230 V, 50 Hz	680 W	3 A	5630 / 4930 m³/h	1250 min⁻¹	53 dB(A)	-40 to 70 °C	670 mm	43 kg
450 mm	4-pole (400 V three-phase)	Standard	8016950	IPX4, motor IP44	3 phases, 400 V, 50 Hz	740 W	1.5 A	5700 / 5080 m³/h	1350 min⁻¹	54 dB(A)	-40 to 80 °C	670 mm	43 kg
450 mm	EC motor	Standard	8017063	IPX4, motor IP54	1 phase, 230 V, 50/60 Hz	750 W	3.3 A	6800 / 6460 m³/h	1440 min⁻¹	50 dB(A)	-25 to 60 °C	670 mm	46 kg
500 mm	4-pole (230 V single-phase)	Standard	8016981	IPX4, motor IP44	1 phase, 230 V, 50 Hz	1300 W	5.70 A	7330 / 6680 m³/h	1320 min⁻¹	55 dB(A)	-20 to 50 °C	670 mm	52 kg
500 mm	4-pole (400 V three-phase)	Standard	8016974	IPX4, motor IP44	3 phases, 400 V, 50 Hz	1430 W	3.00 A	7940 / 7200 m³/h	1375 min⁻¹	58 dB(A)	-40 to 80 °C	670 mm	56 kg
500 mm	EC motor	Standard	8017070	IPX4, motor IP54	3 phases, 400 V, 50/60 Hz	1320 W	2.1 A	10,450 / 9928 m³/h	1350 min⁻¹	45 dB(A)	-25 to 50 °C	670 mm	50 kg
560 mm	4-pole (400 V three-phase)	Standard	8016998	IPX4, motor IP44	3 phases, 400 V, 50 Hz	2380 W	5.00 A	11,340 / 10,490 m³/h	1365 min⁻¹	56 dB(A)	-40 to 60 °C	800 mm	99 kg
560 mm	6-pole (400 V three-phase)	Standard	8017001	IPX4, motor IP44	3 phases, 400 V, 50 Hz	780 W	1.70 A	7970 / 7330 m³/h	885 min⁻¹	49 dB(A)	-40 to 55 °C	800 mm	86 kg
560 mm	EC motor	Standard	8017087	IPX4, motor IP54	3 phases, 400 V, 50/60 Hz	2360 W	3.65 A	13,600 / 12,920 m³/h	1540 min⁻¹	50 dB(A)	-25 to 60 °C	800 mm	60 kg
630 mm	4-pole (400 V three-phase)	MAX	8017025	IPX4, motor IP44	3 phases, 400 V, 50 Hz	4250 W	7.55 A	16,870 / 14,930 m³/h	1300 min⁻¹	69 dB(A)	-40 to 60 °C	800 mm	100 kg
630 mm	4-pole (400 V three-phase)	Standard	8017018	IPX4, motor IP44	3 phases, 400 V, 50 Hz	3310 W	6.20 A	15,170 / 13,740 m³/h	1170 min⁻¹	67 dB(A)	-40 to 35 °C	800 mm	102 kg
630 mm	6-pole (400 V three-phase)	Standard	8037146	IPX4, motor IP44	3 phases, 400 V, 50 Hz	1310 W	2.80 A	12,030 / 10,440 m³/h	880 min⁻¹	55 dB(A)	-40 to 60 °C	800 mm	98 kg
630 mm	EC motor	Standard	8017094	IPX4, motor IP54	3 phases, 400 V, 50/60 Hz	2750 W	4.3 A	16,740 / 15,903 m³/h	1300 min⁻¹	50 dB(A)	-25 to 55 °C	800 mm	69 kg
710 mm	6-pole (400 V three-phase)	Standard	8038624	IPX4, motor IP44	3 phases, 400 V, 50 Hz	2000 W	3.90 A	15,830 / 14,880 m³/h	890 min⁻¹	59 dB(A)	-20 to 40 °C	1000 mm	136 kg

Features

The removable side panels can be arranged so that the air is routed straight through or at a 90° angle.
According to the manufacturer, corrosion-resistant and suitable for outdoor installation; the RSD-IV protective cover and the AH-IV outdoor hood are available for this purpose.

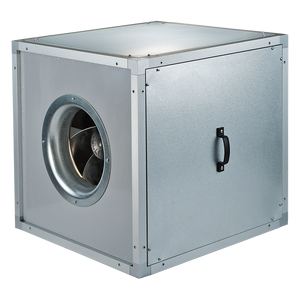

Four-pole or six-pole asynchronous external rotor motor with backward-curved centrifugal impeller, single-phase (E) or three-phase (D); ball bearings for continuous operation, dynamically balanced.
Speed control continuously via an external thyristor controller or in steps via an external autotransformer (both available separately).
Mains connection via an external terminal box.

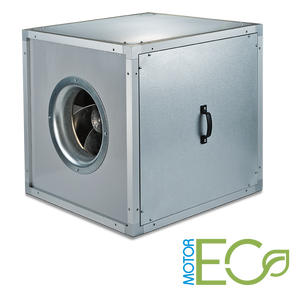

EC external rotor motor with backward-curved impeller; ball bearings for continuous operation, integrated thermal overload protection with automatic restart, dynamically balanced.

Note on variants

Select the connection diameter (ø mm), motor type and performance. The article number and technical data of each variant are listed in the table under Technical data; the price depends on the selected variant.

Installation notes

According to the data sheet, the fan is connected to square or round air ducts via flexible vibration-damping connectors (AKV) or transition pieces (ARV) with a matching cross-section. The installation position is arbitrary depending on the required flow direction; sufficient access for maintenance must be provided.
