Blauberg FQM and FQZ Spigot with Connection Plate

Name: Blauberg FQM and FQZ Spigot with Connection Plate
Brand: Blauberg Ventilatoren GmbH
SKU: 8056673
Price: 38.68 EUR
Availability: InStock

38^{68 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Material

Connection diameter (Ø mm)

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Blauberg FQM and FQZ Spigot with Connection Plate: spigot with connection plate for circular ventilation ducts for wall or ceiling mounting, made of polymer-coated, white painted steel (FQM) or galvanised steel (FQZ). Options under material: polymer-coated steel, white painted (FQM) and galvanised steel (FQZ).

The versions in detail

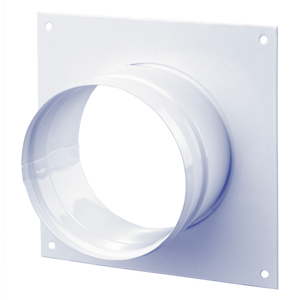

FQM: Blauberg FQM is a spigot with a connection plate for round ventilation pipes made of polymer-coated steel, painted white. According to Blauberg, it is used to connect ventilation pipes and is mounted on the wall or ceiling with screws. The version made of galvanised steel is called FQZ by Blauberg.

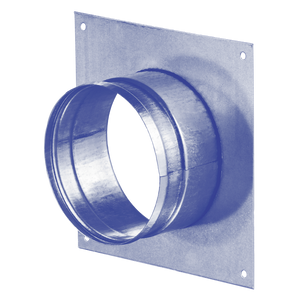

FQZ: Blauberg FQZ is a spigot with a connection plate for round ventilation pipes made of galvanised steel. According to Blauberg, it is used to connect ventilation pipes and is mounted on the wall or ceiling with screws. The version made of polymer-coated steel painted white is called FQM by Blauberg.

Technical data

Length L	50 mm

Data per version:

Feature	FQM	FQZ
Material	polymer-coated steel, painted white	galvanised steel

Note on variants

Select material and connection diameter (ø mm). Not every combination is available.

Material	Connection diameter (Ø mm)	Item number	Ø D, mm	Plate H, mm	Mounting dimension B, mm
polymer-coated steel, white painted (FQM)	100 mm	8040603	100	150 x 150	134 x 134
polymer-coated steel, white painted (FQM)	125 mm	8056628	125	170 x 170	156 x 156
polymer-coated steel, white painted (FQM)	150 mm	8040610	150	204 x 204	188 x 188
polymer-coated steel, white painted (FQM)	160 mm	8056635	160	210 x 210	194 x 194
polymer-coated steel, white painted (FQM)	200 mm	8056642	200	250 x 250	234 x 234
polymer-coated steel, white painted (FQM)	250 mm	8056659	250	300 x 300	284 x 284
polymer-coated steel, white painted (FQM)	315 mm	8056666	315	360 x 360	344 x 344
polymer-coated steel, white painted (FQM)	80 mm	8056673	80	130 x 130	114 x 114
galvanised steel (FQZ)	100 mm	8040627	100	150 x 150	134 x 134
galvanised steel (FQZ)	125 mm	8040634	125	170 x 170	156 x 156
galvanised steel (FQZ)	150 mm	8040641	150	204 x 204	188 x 188
galvanised steel (FQZ)	160 mm	8040658	160	210 x 210	194 x 194
galvanised steel (FQZ)	200 mm	8040665	200	250 x 250	234 x 234
galvanised steel (FQZ)	250 mm	8040672	250	300 x 300	284 x 284
galvanised steel (FQZ)	315 mm	8040689	315	360 x 360	344 x 344
galvanised steel (FQZ)	80 mm	8056987	80	130 x 130	114 x 114
