Blauberg Ventilatoren GmbH  |  SKU: 8025259

Blauberg BlauPlast RV Duct Connector, also with Connection Plate or Non-Return Flap

3295 €
Tax included Shipping calculated at checkout.
● Delivery time: 5 to 10 business days
 ● Shipping: Germany €4.99, free from €100; EU €19.99
✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately
  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Blauberg BlauPlast RV Duct Connector, also with Connection Plate or Non-Return Flap: duct connector made of white PVC for BlauPlast RR ventilation ducts: RV as a simple connector, RVK with non-return flap, RVP with connection plate for wall or ceiling mounting and RVPK with connection plate and non-return flap. Options under version: RV, connector, RVK, with non-return flap, RVP, with connection plate and RVPK, with connection plate and non-return flap.

The versions in detail

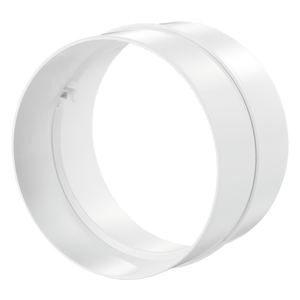

RV, connector: Blauberg BlauPlast RV is a plastic pipe connector. According to Blauberg, it joins BlauPlast RR ventilation pipes directly.

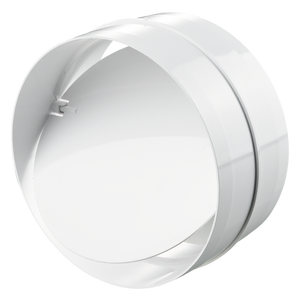

RVK, with non-return flap: Blauberg BlauPlast RVK is a connecting element with a non-return flap for ventilation pipes of the same diameter. According to Blauberg, the flap prevents backflow of air; the element is connected directly to the ventilation pipes, and an integrated stop limits the insertion depth.

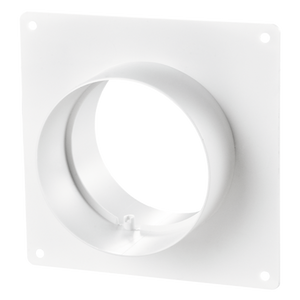

RVP, with connection plate: Blauberg BlauPlast RVP is a pipe connecting element with a connection plate for mounting ventilation pipes. According to Blauberg, it is fastened to the wall or ceiling with screws.

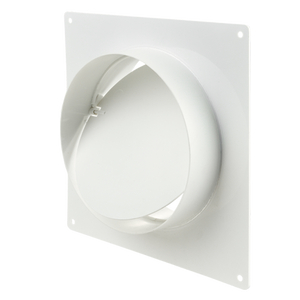

RVPK, with connection plate and non-return flap: Blauberg BlauPlast RVPK is a pipe connecting element with a connection plate and non-return flap. According to Blauberg, it is used to mount ventilation pipes on the wall or ceiling (fastened with screws); the flap prevents backflow of air.

Technical data
Material PVC, white

Data per version:

Feature RV, connector RVK, with non-return flap RVP, with connection plate RVPK, with connection plate and non-return flap
Length 62 mm 62 mm not specified not specified

Note on variants

Select version and connection diameter (ø mm). Not every combination is available.

Version Connection diameter (Ø mm) Item number Ø D1 inside, mm Ø D2 outside, mm Ø D1, mm Ø D2, mm Plate a, mm Mounting dimension b, mm
RV, connector 100 mm 8025259 96 100
RV, connector 125 mm 8025266 123 125
RV, connector 150 mm 8025273 148 150
RVK, with non-return flap 100 mm 8025327 96 100
RVK, with non-return flap 125 mm 8025440 123 125
RVK, with non-return flap 150 mm 8025457 148 150
RVP, with connection plate 100 mm 8025334 97 100 150 x 150 134 x 134
RVP, with connection plate 125 mm 8025341 122 125 170 x 170 154 x 154
RVP, with connection plate 150 mm 8025358 147 150 204 x 204 188 x 188
RVPK, with connection plate and non-return flap 100 mm 8025372 97 100 150 x 150 134 x 134
RVPK, with connection plate and non-return flap 125 mm 8025396 122 125 170 x 170 154 x 154
RVPK, with connection plate and non-return flap 150 mm 8025419 147 150 204 x 204 188 x 188

Features
  • Part of the BlauPlast plastic round pipe system, which Blauberg intends for the ventilation of residential buildings and offices.

Data sheets and manuals (PDF)
