InoxAir Band Clamp, Roll and Lock

Name: InoxAir Band Clamp, Roll and Lock
Brand: InoxAir GmbH
SKU: KSC6210
Price: 13.99 EUR
Availability: InStock

13^{99 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 working days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Version

Size

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

InoxAir Band Clamp, Roll and Lock combines the following versions in one product: band clamp Ø 60, stainless steel band clamp, 30 m roll, band clamp lock (pack of 50). Select the required version under Version and then the matching variant under Size. The details for each version are given below.

The versions in detail

band clamp Ø 60: InoxAir Hose Clamp, Ø 60 is a band clamp made of stainless steel for flexible connections. The lock can be flipped up.

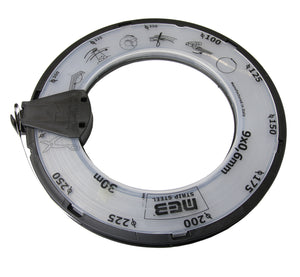

stainless steel band clamp, 30 m roll: InoxAir Stainless Steel Roll Clamp 30m, Endless Clamping Straps is an endless band clamp made of stainless steel supplied on a roll. According to inoxair.de, the band is 9 mm wide and 30 m long.

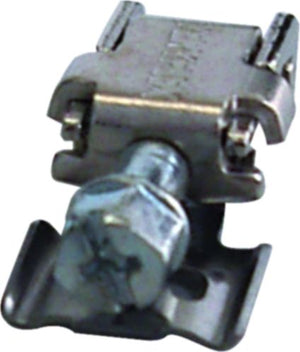

band clamp lock (pack of 50): InoxAir Band Clamp Fastener for Ø 60-380mm (PU50) is a lock made of steel that can be flipped up, for band clamps with a width of 9 mm and a clamping range of Ø 60 to 380 mm. One packing unit contains 50 pieces.

Technical data

Source	InoxAir catalogue Duct materials, p. 182; InoxAir catalogue Supply and exhaust ventilation, p. 276; inoxair.de

Data per version:

Feature	band clamp Ø 60	stainless steel band clamp, 30 m roll	band clamp lock (pack of 50)
Design	band clamp with lock that can be flipped up	endless band clamp, on a roll	lock, can be flipped up
Material	stainless steel	stainless steel	steel
Width	9 mm	9 mm	not specified
Clamping range	Ø 60 to 215 mm or Ø 60 to 380 mm	not specified	not specified
Length according to inoxair.de	not specified	30 m	not specified
Dimensions according to the catalogue	not specified	not specified	60 to 380 x 9 mm, length 120 mm
Packing unit	not specified	not specified	50 pieces

Note on variants

Select version and size. Not every combination is available.

Version	Size	Item number	Clamping range	Width
Bandschelle Ø 60	for Ø 60-215 mm	KSC6210	Ø 60 to 215 mm	9 mm
Bandschelle Ø 60	for Ø 60-380 mm	KSC6380	Ø 60 to 380 mm	9 mm
Bandschelle Edelstahl, Rolle 30 m	Rolle 30 m	KSC3009		9 mm
Bandschellenverschluss (VE 50)	für Ø 60 bis 380 mm	KSC0050

Features

band clamp Ø 60: For flexible connections.
band clamp Ø 60: Lock can be flipped up.
stainless steel band clamp, 30 m roll: For cutting the required clamp length from the roll.
stainless steel band clamp, 30 m roll: Matching lock according to the catalogue: KSC 0050 (can be flipped up, packing unit 50 pieces).
band clamp lock (pack of 50): Listed in the catalogue together with the stainless steel endless band clamps (KSC 3009).
band clamp lock (pack of 50): According to inoxair.de in a box of 50 pieces.

Data sheets and manuals (PDF)

InoxAir Catalog Pipe Materials (PDF)
