AFPRO Synthetic Filter Media

Name: AFPRO Synthetic Filter Media
Brand: AFPRO Filters
SKU: T15/500/100X100
Availability: InStock

From 0^{49 €}

Tax included Shipping calculated at checkout.

Note: If the total value of all AFPRO items in your cart is below 200,00 €, we charge a small order surcharge of 20,00 €.

● Delivery time: 5 to 10 business days
● Shipping: Germany free; EU €24.99

✓ Precise fit by dimensions and filter class
✓ Original manufacturer quality
✓ Expert advice on the right filter class
✓ Pay by PayPal, card, Klarna or bank transfer

Configure your version

Choose the filter class, then the dimensions in any order. Only combinations that exist are offered.

Loading configurator …

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

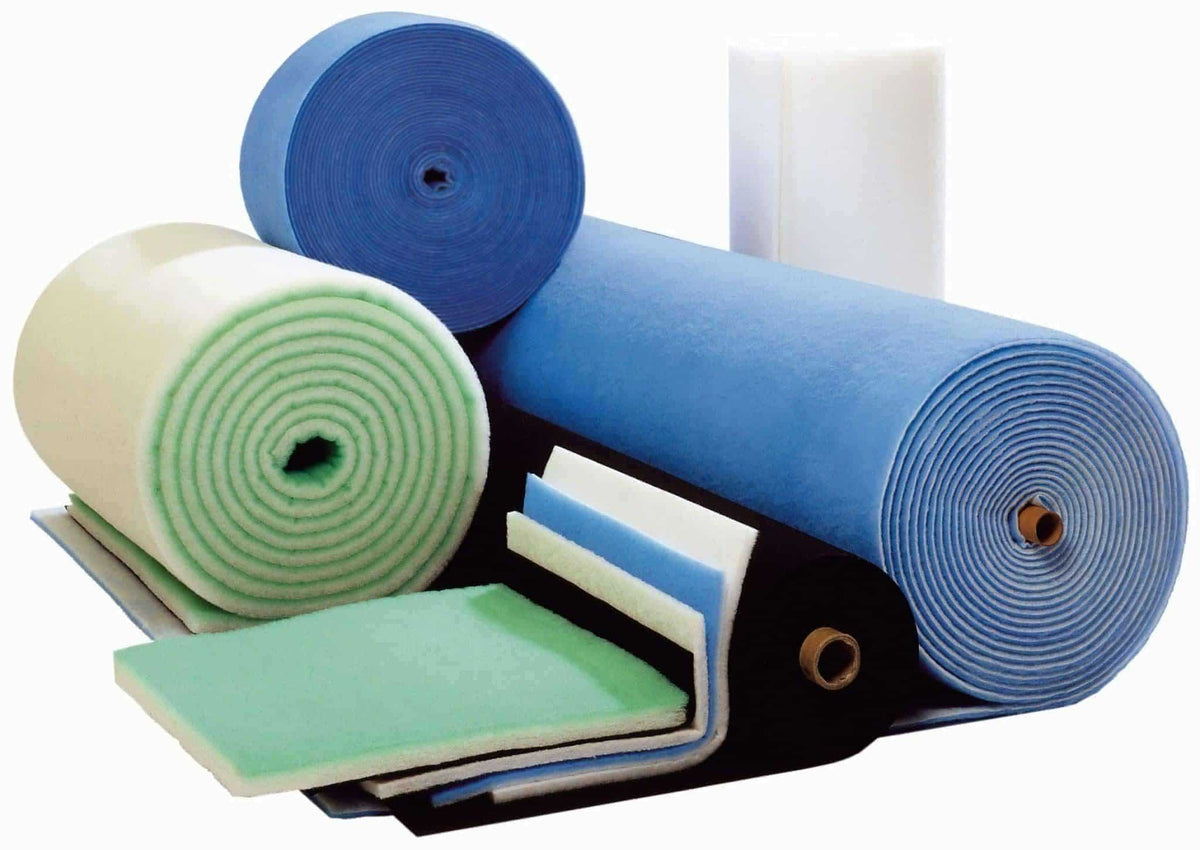

AFPRO Synthetic Filter Media are polyester filter media from AFPRO Filters in the filter classes ISO Coarse 50%, 70% and 80% according to ISO 16890 (media T15/150, PST290, PST640, T15/500, F360 and F560G). The manufacturer intends them as pre-filters and supplies them cut to size or as rolls that can be cut to the required size. In addition, there are the activated carbon media CM12 and CM3. We offer around 3,600 versions; select the right one in the configurator above.

Technical data

Series	Synthetic media (AFPRO Filters, catalogue 2026, p. 135)
Application	pre-filter
Material	polyester (CM12 and CM3 with activated carbon)
Filter classes according to ISO 16890	ISO Coarse 50%, ISO Coarse 70%, ISO Coarse 80%; the catalogue gives no filter class for CM12 and CM3
Maximum final pressure drop	250 Pa
Maximum temperature	70 °C
Maximum relative humidity	90%
Supplied as	cut to size or roll

Installation notes

According to the manufacturer, install the filter medium in the correct direction (observe the clean side and the inlet side of the contaminated air).
Fix the filter medium securely so that it is not carried away by the air stream and no leaks occur.
Record the installation date, filter type and initial resistance.

Information according to the AFPRO catalogue 2026, p. 143.

Note on variants

In the configurator, select the filter class, filter medium, format (cut to size or roll), width, length and thickness step by step. Only combinations that exist are offered. With the quick search you can find a version directly by its size (for example 500x500) or item number. The item number starts with the medium. Dimensions in mm according to our article data; for rolls the length is given in metres. If our article data lack a value (for example the thickness of individual cut pieces or the filter class of CM12 and CM3), the configurator shows not specified. For the roll F560G-20x2 our article data specify the filter class ePM10 55%. The tables list the catalogue values of the medium per square metre; they apply equally to cut pieces and rolls.

Medium	Filter class ISO 16890	Colour	Airflow (m³/h/m²)	Pressure drop (Pa)	Weight (g/m²)	Thickness (mm)
T15/150	ISO Coarse 50%	White	5400	55	150	see version
PST290	ISO Coarse 50%	White	5400	39	200	see version
PST640	ISO Coarse 50%	white/blue	5400	88	400	see version
T15/500	ISO Coarse 70%	White	5400	64	300	20
F360	ISO Coarse 80%	White	900	15	306	22
F560G	ISO Coarse 80%	White	900	24	580	22

Values according to the AFPRO catalogue 2026, p. 135. Airflow for F360 and F560G at an air velocity of 0.25 m/s.

Medium	Colour	Activated carbon content (g/m²)	Weight (g/m²)	Pressure drop	Thickness (mm)
CM12	grey	500	1000	15 Pa at 0.5 m/s	12
CM3	grey	100	280	35 Pa at 0.5 m/s	see version

Values according to the AFPRO catalogue 2026, p. 135.

Data sheets and manuals (PDF)

AFPRO Product Catalog 2025 (PDF)
