AFPRO Filters | SKU: HPG1214D200300L

AFPRO HEPA HPG Series

Name: AFPRO HEPA HPG Series
Brand: AFPRO Filters
SKU: HPG1214D200300L
Price: 169.99 EUR
Availability: InStock

169^{99 €}

Tax included Shipping calculated at checkout.

Note: If the total value of all AFPRO items in your cart is below 200,00 €, we charge a small order surcharge of 20,00 €.

● Delivery time: 5 to 10 business days
● Shipping: Germany free; EU €24.99

✓ Precise fit by dimensions and filter class
✓ Original manufacturer quality
✓ Expert advice on the right filter class
✓ Pay by PayPal, card, Klarna or bank transfer

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

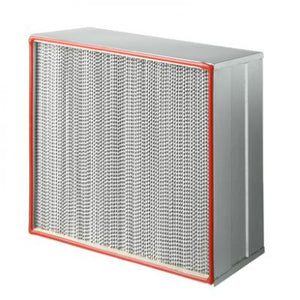

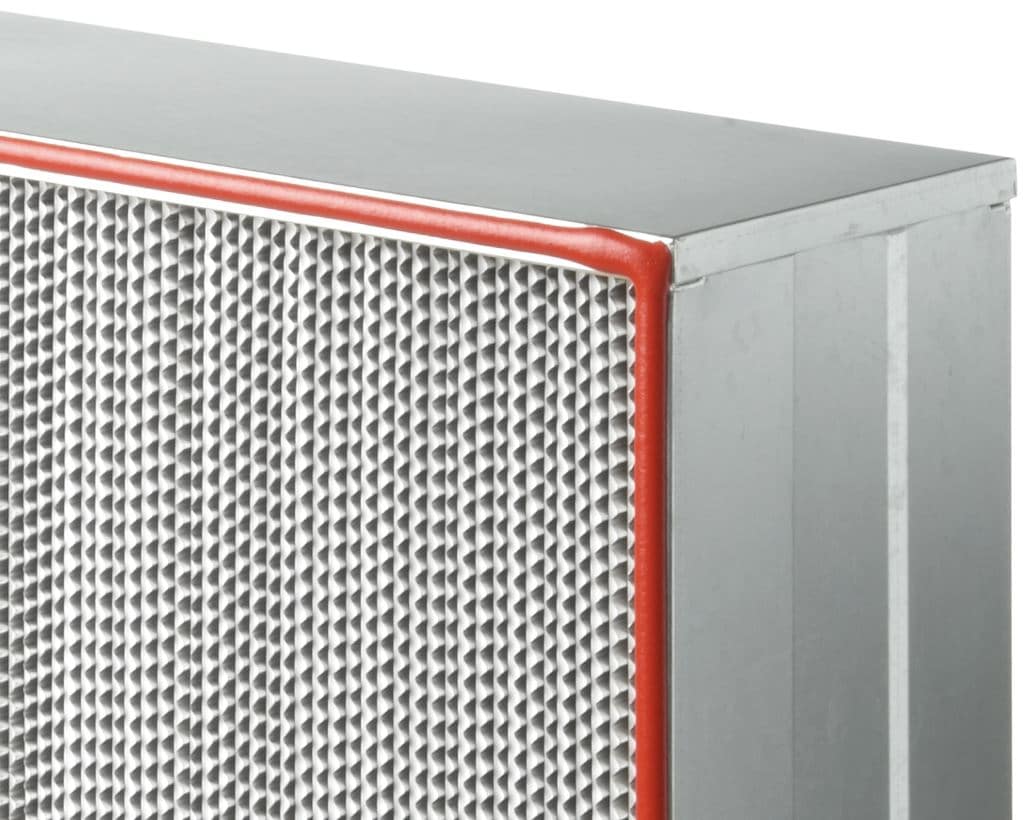

The AFPRO HEPA HPG series comprises particulate air filters with glass fibre paper as the filter medium in a galvanised steel frame. The catalogue lists the series under the turbulent flow filters (article number scheme p. 79). The manufacturer intends the filters for cleanrooms, asbestos removal and operating theatres. All HPG filters are available in several versions: filter classes E10, E11, H13 and H14 according to EN 1822 as well as ePM1 55%, ePM1 80% and ePM2.5 55% according to ISO 16890, in several versions (spacers and gasket).

Technical data

Series	HPG (AFPRO Filters, catalogue 2026, pp. 86 and 87)
Filter classes in this product	E10, E11, H13, H14 (EN 1822); ePM1 55%, ePM1 80%, ePM2.5 55% (ISO 16890)
Filter medium	glass fibre paper
Frame	steel, galvanised
Spacers	hot-melt or aluminium separators, depending on the version
Bonding	two-component polyurethane
Gasket	depending on the version, see note on variants
Protective grid	on both sides
Maximum final pressure drop	500 Pa
Maximum temperature	70 °C
Maximum relative humidity	90%
Depth	150 mm, 215 mm or 292 mm depending on the variant

Features

According to EN 1822, E10 and E11 belong to group E (EPA), H13 and H14 belong to group H (HEPA). Minimum efficiency (integral value at MPPS) according to catalogue p. 27: E10 at least 85%, E11 at least 95%, H13 at least 99.95%, H14 at least 99.995%.
The variants with the classes ePM1 55%, ePM1 80% and ePM2.5 55% are rated according to ISO 16890. The catalogue table of the HPG series does not list these classes.
According to the catalogue, the airflow is limited to 125% of the nominal value. At a higher airflow, filters may fall into a lower class.
Installation notes from the manufacturer (catalogue p. 142): Do not touch the filter medium. Every filter must be validated after installation to check that it is seated correctly.

Note on variants

Select the dimension, the filter class and the version. The dimension is given in mm (width x height x depth). The version corresponds to the first digits of the article number according to the scheme in catalogue p. 79: digit 2 spacers, digit 3 gasket, followed by filter class, grid (D on both sides), height, width and frame depth (L 150 mm, M 292 mm). All variants have a protective grid on both sides. The versions with the suffix HT are not listed in the catalogue table; please ask us about the operating limits of these versions before ordering.

Version	Spacers	Gasket
HPG10	hot-melt	no gasket
HPG11	hot-melt	polyurethane foamed on one side
HPG12	hot-melt	polyurethane foamed on both sides
HPG13	hot-melt	flat neoprene gasket on one side
HPG14	hot-melt	flat neoprene gasket on both sides
HPG21	aluminium	polyurethane foamed on one side
HPG27 HT	aluminium	code 7, not listed in the scheme
HPG28 HT	aluminium	code 8, not listed in the scheme

Catalogue values (p. 86) are only available for version HPG21. They are shown with the variant selection:

Type	Dimensions (mm)	Filter class	Filter area (m²)	Nominal airflow (m³/h)	Initial pressure drop (Pa)
HPG2110DADM	288x592x292	E10	11.1	900	125
HPG2110DDDM	592x592x292	E10	22.8	1850	125
HPG2111DEEM	610x610x292	E11	24.2	2000	140
HPG2113DBEM	305x610x292	H13	12.0	1000	250

Values according to the AFPRO catalogue 2026, p. 86; initial pressure drop at nominal airflow.

Data sheets and manuals (PDF)

AFPRO Product Catalogue 2025 (PDF)
