AFPRO GP Panels

Name: AFPRO GP Panels
Brand: AFPRO Filters
SKU: GP12x24x1
Availability: InStock

From6^{49 €}

Tax included Shipping calculated at checkout.

Note: If the total value of all AFPRO items in your cart is below 200,00 €, we charge a small order surcharge of 20,00 €.

● Delivery time: 5 to 10 business days
● Shipping: Germany free; EU €24.99

✓ Precise fit by dimensions and filter class
✓ Original manufacturer quality
✓ Expert advice on the right filter class
✓ Pay by PayPal, card, Klarna or bank transfer

Configure your version

Select the attributes in any order. Only combinations that exist are offered.

Loading configurator …

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

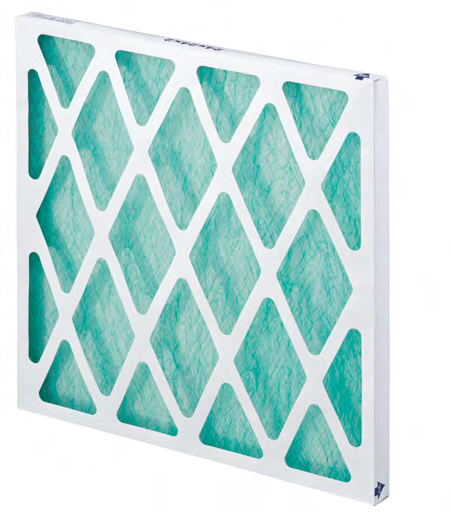

AFPRO GP panels are panel filters with a glass fibre medium in a cardboard frame. The manufacturer intends them as pre-filters in HVAC systems, in industry and in spray booths. The filter class according to ISO 16890 is ISO Coarse 30% or ISO Coarse 50%, depending on the variant.

Technical data

Selected version

Filter class (ISO 16890)	ISO Coarse 30%
Nominal air flow	1,590 m³/h
Initial pressure drop	35 Pa
Max. final pressure drop	250 Pa
Filter area	0.17 m²
Frame material	Cardboard
Max. operating temperature	70 °C

Series	GP (AFPRO Filters, catalogue 2026, p. 66)
Filter class according to ISO 16890	ISO Coarse 30% or ISO Coarse 50% (depending on the variant)
Filter medium	glass fibre
Frame	cardboard
Maximum final pressure drop	250 Pa
Maximum temperature	70 °C
Maximum relative humidity	90%
Standard depths	23 and 45 mm

Features

16 standard sizes according to the catalogue: eight frame sizes from 288x594 mm to 594x594 mm, each in 23 and 45 mm depth.
For the standard sizes, the catalogue gives the filter class ISO Coarse 30% and an initial pressure drop at nominal airflow of 35 Pa at 23 mm depth, and ISO Coarse 50% and 55 Pa at 45 mm depth.
According to the catalogue, the filter area and nominal airflow are the same for both depths, for example 0.35 m² and 3400 m³/h at 594x594 mm.
In addition to the standard sizes, we offer custom sizes and further depths.

Note on variants

Select the dimension, the filter class and the depth. The dimension is given as width x height x depth in mm; the last figure is decisive. For the 15 standard sizes in the table, the catalogue gives the filter area, nominal airflow and initial pressure drop. The catalogue gives no performance data for custom sizes and further depths. The AFPRO catalogue 2026 contains no data for variants with GPMC in the article number or for versions with the addition /P7. Please check the installation dimension of your filter frame before ordering.

Type	Dimensions WxHxD (mm)	Filter class	Filter area (m²)	Nominal airflow (m³/h)	Initial pressure drop at nominal airflow (Pa)
GP12x24x1	288x594x23	ISO Coarse 30%	0.17	1590	35
GP16x20x1	394x495x23	ISO Coarse 30%	0.20	1830	35
GP16x25x1	394x622x23	ISO Coarse 30%	0.25	2330	35
GP20x20x1	495x495x23	ISO Coarse 30%	0.25	2300	35
GP20x24x1	495x594x23	ISO Coarse 30%	0.29	2790	35
GP20x25x1	495x622x23	ISO Coarse 30%	0.31	2930	35
GP24x24x1	594x594x23	ISO Coarse 30%	0.35	3400	35
GP12x24x2	288x594x45	ISO Coarse 50%	0.17	1590	55
GP16x20x2	394x495x45	ISO Coarse 50%	0.20	1830	55
GP16x24x2	394x594x45	ISO Coarse 50%	0.23	2220	55
GP16x25x2	394x622x45	ISO Coarse 50%	0.25	2330	55
GP20x20x2	495x495x45	ISO Coarse 50%	0.25	2300	55
GP20x24x2	495x594x45	ISO Coarse 50%	0.29	2790	55
GP20x25x2	495x622x45	ISO Coarse 50%	0.31	2930	55
GP24x24x2	594x594x45	ISO Coarse 50%	0.35	3400	55

Values according to the AFPRO catalogue 2026, p. 66.
