Sanha | SKU: 1133331512

SANHA-Press Solar Union, Flat Sealing

Name: SANHA-Press Solar Union, Flat Sealing
Brand: Sanha
SKU: 1133331512
Price: 23.49 EUR
Availability: InStock

23^{49 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

SANHA-Press Solar Union, Flat Sealing combines the following versions in one product: male thread, female thread, press connection both ends. Select the required version under Connection and then the matching variant under Size. The details for each version are given below.

The versions in detail

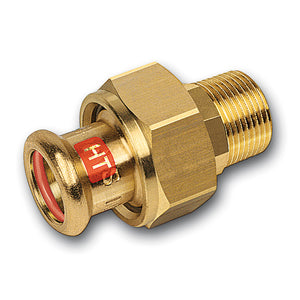

male thread: SANHA-Press Solar Union, Male Thread, Flat Sealing is a flat-sealing union with a universal press end and a male thread. The item belongs to the SANHA-Press Solar press fitting system (series 13000) made of copper and, according to Sanha, is made of a copper alloy. According to Sanha, the system with red FKM sealing ring is intended for solar and high-temperature applications.

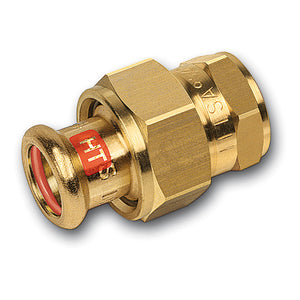

female thread: SANHA-Press Solar Union, Female Thread, Flat Sealing is a flat-sealing union with a universal press end and a female thread. The item belongs to the SANHA-Press Solar press fitting system (series 13000) made of copper and, according to Sanha, is made of a copper alloy. According to Sanha, the system with red FKM sealing ring is intended for solar and high-temperature applications.

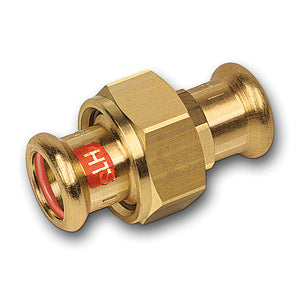

press connection both ends: SANHA-Press Solar Union, Flat Sealing is a flat-sealing union with universal press ends on both sides. The item belongs to the SANHA-Press Solar press fitting system (series 13000) made of copper and, according to Sanha, is made of a copper alloy. According to Sanha, the system with red FKM sealing ring is intended for solar and high-temperature applications.

Technical data

Material	copper alloy (according to Sanha)
Union nut	brass (according to Sanha)
Flat gasket	Centellen
Sealing ring	FKM, red, factory-fitted
Nominal pressure	PN 16 (according to Sanha)
Max. continuous temperature	-20 to 160 °C depending on the medium, briefly up to 280 °C (according to Sanha)
Testing	connection tested in accordance with DVGW W 534 (according to Sanha)
Press tool	up to 54 mm with press jaws of the SA, V or M original profile (according to Sanha)
Dimensions	d 15 to 54 mm
Suitable pipes	copper pipes according to EN 1057 in the soft, half-hard and hard versions (according to Sanha)

Data per version:

Feature	male thread	female thread	press connection both ends
System	SANHA-Press Solar, series 13000, catalogue number 13333G	SANHA-Press Solar, series 13000, catalogue number 13330G	SANHA-Press Solar, series 13000, catalogue number 13330
Design	union, flat sealing, with universal press end and male thread	union, flat sealing, with universal press end and female thread	union, flat sealing, universal press ends on both sides
Thread	pipe thread R/Rp according to EN 10226 (according to Sanha)	pipe thread R/Rp according to EN 10226 (according to Sanha)	not specified

Note on variants

Select connection and size. Not every combination is available.

Connection	Size	Item number	d	R	L	SW1	SW2	z	Rp
Außengewinde	15x1/2	1133331512	15	1/2	55	30	22	37
Außengewinde	15 x 3/4	1133331534	15	3/4	60	30	27	42
Außengewinde	18x1/2	1133331812	18	1/2	69	30	22	49
Außengewinde	18x3/4	1133331834	18	3/4	74	30	27	54
Außengewinde	22x1	113333221	22	1	70	37	34	46
Außengewinde	22x1/2	1133332212	22	1/2	71	37	23	47
Außengewinde	22x3/4	1133332234	22	3/4	66	37	27	42
Außengewinde	28x1	113333281	28	1	74	46	34	46
Außengewinde	28x3/4	1133332834	28	3/4	78	46	28	51
Außengewinde	35x1 1/4	11333335114	35	1 1/4	95	52	46	63
Außengewinde	42x1 1/2	11333342112	42	1 1/2	102	59	50	64
Außengewinde	54x2	113333542	54	2	116	75	60	73
Innengewinde	15 x 3/4	1133301534	15		55	30	30	22	3/4
Innengewinde	18x3/4	1133301834	18		69	30	30	34	3/4
Innengewinde	22x1	113330221	22		66	39	37	25	1
Innengewinde	22x3/4	1133302234	22		62	37	30	23	3/4
Innengewinde	28x1	113330281	28		66	46	39	22	1
Innengewinde	35x1 1/4	11333035114	35		74	52	46	23	1 1/4
Innengewinde	42x1 1/2	11333042112	42		85	59	54	28	1 1/2
Innengewinde	54x2	113330542	54		94	75	66	27	2
beidseitig Pressanschluss	15	11333015	15		55	30	19	18
beidseitig Pressanschluss	18	11333018	18		70	30	22	30
beidseitig Pressanschluss	22	11333022	22		66	37	26	20
beidseitig Pressanschluss	28	11333028	28		71	46	34	17
beidseitig Pressanschluss	35	11333035	35		82	52	40	18
beidseitig Pressanschluss	42	11333042	42		94	59	46	19
beidseitig Pressanschluss	54	11333054	54		102	75	60	17

Features

Areas of application according to the Sanha installation information: compressed air, technical gases, heating and cooling, saturated steam systems, district heating, heating oil and fuels, and solar systems. According to Sanha, the FKM sealing ring is resistant to oils and water-glycol mixture.
Marking on the fitting according to Sanha: manufacturer, dimension, approval mark and red HT marking.
For technical gases, the maximum operating pressure is 16 bar according to Sanha.
