SANHA-Press Gas Half Union, Flat or Conical Sealing

Name: SANHA-Press Gas Half Union, Flat or Conical Sealing
Brand: Sanha
SKU: 1113591212
Price: 10.49 EUR
Availability: InStock

10^{49 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

SANHA-Press Gas Half Union, Flat or Conical Sealing combines the following versions in one product: flat sealing, conical sealing. Select the required version under Dichtart and then the matching variant under Size. The details for each version are given below.

The versions in detail

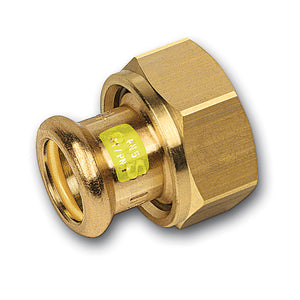

flat sealing: SANHA-Press Gas Half Union, Flat Sealing is a flat-sealing half union with a universal press end and a fastening thread. The item belongs to the SANHA-Press Gas press fitting system (series 11000) made of copper and, according to Sanha, is made of a copper alloy. According to Sanha, it is intended for gas installations.

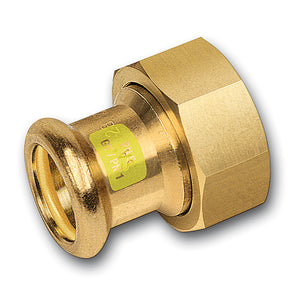

conical sealing: SANHA-Press Gas Half Union, Conical Sealing is a conical-seal half union with a universal press end and a fastening thread. The item belongs to the SANHA-Press Gas press fitting system (series 11000) made of copper and, according to Sanha, is made of a copper alloy. According to Sanha, it is intended for gas installations.

Technical data

Material	copper alloy (according to Sanha)
Union nut	brass (according to Sanha)
Sealing ring	HNBR, yellow, factory-fitted
Nominal pressure	PN 5 / GT-PN 1 (according to the Sanha installation information)
Max. continuous temperature	-20 to 70 °C (according to the Sanha installation information)
Testing	connection tested according to DVGW G 5614 (according to Sanha)
Press tool	up to 54 mm with press jaws of the SA, V or M original profile (according to Sanha)
Thread	fastening thread G according to ISO 228 (according to Sanha)
Suitable pipes	copper pipes according to EN 1057 (Sanha recommendation)

Data per version:

Feature	flat sealing	conical sealing
System	SANHA-Press Gas, series 11000, catalogue number 11359G	SANHA-Press Gas, series 11000, catalogue number 11360G
Design	half union, flat sealing, with universal press end and fastening thread	half union, conical seal, with universal press end and fastening thread
Flat gasket	Centellen	not specified
Dimensions	d 12 to 42 mm	d 15 to 28 mm
Conical sealing surface	not specified	with additional O-ring (HNBR, yellow)

Note on variants

Select dichtart and size. Not every combination is available.

Dichtart	Size	Item number	d	G	L	SW	z
flachdichtend	12 x 1/2	1113591212	12	1/2	31	24	8
flachdichtend	12x3/4	1113591234	12	3/4	30	30	8
flachdichtend	15x1	111359151	15	1	34	37	8
flachdichtend	15x1/2	1113591512	not stated	not stated	not stated	not stated	not stated
flachdichtend	15x3/4	1113591534	15	3/4	32	30	7
flachdichtend	18x1	111359181	18	1	36	37	8
flachdichtend	18x3/4	1113591834	18	3/4	46	30	19
flachdichtend	22x1	111359221	22	1	42	37	8
flachdichtend	22x1 1/2	11135922112	22	1 1/2	43	52	10
flachdichtend	22x1 1/4	11135922114	22	1 1/4	38	46	6
flachdichtend	22x3/4	1113592234	22	3/4	51	30	20
flachdichtend	28x1 1/2	11135928112	28	1 1/2	45	52	9
flachdichtend	28x1 1/4	11135928114	28	1 1/4	46	46	9
flachdichtend	35x1 1/2	11135935112	35	1 1/2	52	52	9
flachdichtend	35x2	111359352	35	2	54	64	9
flachdichtend	42x2	111359422	42	2	61	64	11
konisch dichtend	15x7/8	1113601578	15	7/8	37	34	9
konisch dichtend	18x1 1/8	11136018118	18	1 1/8	42	40	6
konisch dichtend	22x1 1/8	11136022118	22	1 1/8	44	40	8
konisch dichtend	22x1 3/8	11136022138	not stated	not stated	not stated	not stated	not stated
konisch dichtend	28x1 3/8	11136028138	28	1 3/8	52	48	12

Features

Area of application according to the Sanha installation information: flammable gases according to DVGW worksheet G 260.
Marking on the fitting according to Sanha: manufacturer, dimension, DVGW approval mark and yellow GAS marking GT/PN 1.
Leak path feature: connections accidentally left unpressed are detected during the leak test. Sanha states test pressures of 10 mbar to 1 bar with air for this.
DVGW type examination certificate DG-4550CU0259 for press connectors made of copper and copper alloy for copper pipelines, leaky when unpressed, model SANHA-Press Gas series 10000 and series 11000 (test basis DVGW G 5614), valid until 13.08.2029.
