SANHA-Press Chrome Crossover Bend, 1 or 2 Sockets

Name: SANHA-Press Chrome Crossover Bend, 1 or 2 Sockets
Brand: Sanha
SKU: 11608512
Price: 23.49 EUR
Availability: InStock

23^{49 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Version

Size

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

SANHA-Press Chrom Crossover Bend, 1 or 2 Sockets combines the following versions in one product: 2 sockets, 1 socket (socket x spigot). Select the required version under Version and then the matching variant under Size. The details for each version are given below.

The versions in detail

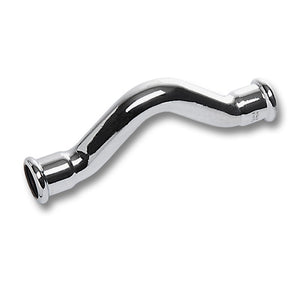

2 sockets: SANHA-Press Chrom crossover, 2 sockets is a crossover with universal press ends on both sides, used to route one pipe over a crossing pipe. The item belongs to the SANHA-Press Chrom press fitting system (series 16000) made of copper. According to Sanha, the system is intended for visible installations with chrome-plated copper pipes.

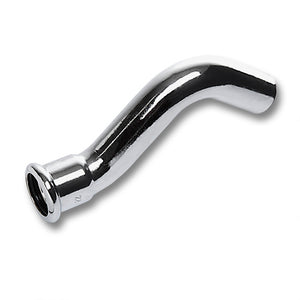

1 socket (socket x spigot): SANHA-Press Chrom crossover, 1 socket is a crossover with one universal press end and one male plain end, used to route one pipe over a crossing pipe. The item belongs to the SANHA-Press Chrom press fitting system (series 16000) made of copper. According to Sanha, the system is intended for visible installations with chrome-plated copper pipes.

Technical data

Material	copper Cu-DHP, chrome-plated (according to Sanha)
Sealing ring	EPDM, black, factory-fitted
Nominal pressure	PN 16, operating conditions as series 6000 (according to the Sanha installation information)
Max. continuous temperature	-30 to 120 °C, briefly up to 150 °C (according to the Sanha installation information, series 6000)
Testing	connection tested in accordance with DVGW W 534 (according to Sanha)
Press tool	up to 28 mm with press jaws of the SA, V or M original profile (according to Sanha)
Dimensions	d 12 to 18 mm
Suitable pipes	chrome-plated copper pipes according to EN 1057 (according to Sanha)

Data per version:

Feature	2 sockets	1 socket (socket x spigot)
System	SANHA-Press Chrom, series 16000, catalogue number 16085	SANHA-Press Chrom, series 16000, catalogue number 16086
Design	crossover, universal press ends on both sides	crossover with universal press end and male plain end

Note on variants

Select version and size. Not every combination is available.

Version	Size	Item number
2 Muffen	12	11608512
2 Muffen	15	11608515
2 Muffen	18	11608518
1 Muffe (Muffe x Einsteckende)	12	11608612
1 Muffe (Muffe x Einsteckende)	15	11608615
1 Muffe (Muffe x Einsteckende)	18	11608618

Features

Areas of application according to Sanha (technical submittal SANHA-Press Chrom): heating and cooling, rainwater, inert gases and technical gases. According to Sanha, the chrome plating serves the appearance in visible installations.
Leak path feature: connections accidentally left unpressed are detected during the leak test. Sanha states test pressures of 1 to 6.5 bar with water or 150 mbar to 3 bar with air for this.
For technical gases, the maximum operating pressure is 16 bar according to Sanha.
