Sanha  |  SKU: 1604112

SANHA-Press Bend 45°, 1 or 2 Sockets

399 €
Tax included Shipping calculated at checkout.
● Delivery time: 5 to 10 business days
 ● Shipping: Germany €4.99, free from €100; EU €19.99
✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately
  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

SANHA-Press Bend 45°, 1 or 2 Sockets combines the following versions in one product: 2 sockets, 1 socket (socket x spigot). Select the required version under Version and then the matching variant under Size. The details for each version are given below.

The versions in detail

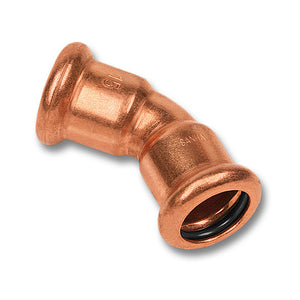

2 sockets: SANHA-Press Bend 45°, 2 Sockets is a 45° bend with universal press ends on both sides. The item belongs to the SANHA-Press press fitting system (series 6000) made of copper.

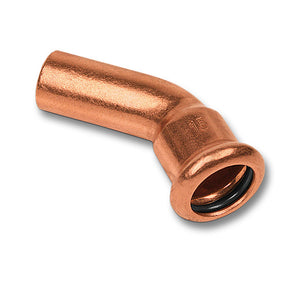

1 socket (socket x spigot): SANHA-Press Bend 45°, 1 Socket is a 45° bend with one universal press end and one male plain end. The item belongs to the SANHA-Press press fitting system (series 6000) made of copper.

Technical data
Material copper Cu-DHP (CW024A)
Sealing ring EPDM, black, factory-fitted
Nominal pressure PN 16 (according to Sanha)
Max. continuous temperature -30 to 120 °C, briefly up to 150 °C (according to Sanha)
Testing connection tested according to DVGW W 534 (according to Sanha)
Press tool up to 54 mm with press jaws of the SA, V or M original profile (according to Sanha)
Dimensions d 12 to 108 mm
Suitable pipes copper pipes according to EN 1057 and DVGW GW 392 with the wall thicknesses listed in the table of the Sanha installation information

Data per version:

Feature 2 sockets 1 socket (socket x spigot)
System SANHA-Press, series 6000, catalogue number 6041 SANHA-Press, series 6000, catalogue number 6040
Design bend 45°, universal press ends on both sides bend 45° with universal press end and male plain end

Note on variants

Select version and size. Not every combination is available.

Version Size Item number d L z L1 L2
2 Muffen 108.0 16041108 108 124 55
2 Muffen 12 1604112 12 22 6
2 Muffen 14 1604114 14 26 8
2 Muffen 15 1604115 15 26 8
2 Muffen 16 1604116 16 26 8
2 Muffen 18 1604118 18 29 9
2 Muffen 22 1604122 22 35 11
2 Muffen 28 1604128 28 41 14
2 Muffen 35 1604135 35 50 18
2 Muffen 42 1604142 42 59 21
2 Muffen 54 1604154 54 70 28
2 Muffen 64 1604164 64 80 33
2 Muffen 67 1604167 66.7 82 34
2 Muffen 76.1 1604176 76.1 89 39
2 Muffen 88.9 1604189 88.9 101 45
1 Muffe (Muffe x Einsteckende) 108.0 16040108 108 55 125 145
1 Muffe (Muffe x Einsteckende) 12 1604012 12 6 22 30
1 Muffe (Muffe x Einsteckende) 14 1604014 14 8 26 34
1 Muffe (Muffe x Einsteckende) 15 1604015 15 8 26 34
1 Muffe (Muffe x Einsteckende) 16 1604016 16 8 26 34
1 Muffe (Muffe x Einsteckende) 18 1604018 18 9 29 38
1 Muffe (Muffe x Einsteckende) 22 1604022 22 11 35 44
1 Muffe (Muffe x Einsteckende) 28 1604028 28 15 41 49
1 Muffe (Muffe x Einsteckende) 35 1604035 35 18 50 58
1 Muffe (Muffe x Einsteckende) 42 1604042 42 21 59 74
1 Muffe (Muffe x Einsteckende) 54 1604054 54 27 70 85
1 Muffe (Muffe x Einsteckende) 64 1604064 64 32 80 98
1 Muffe (Muffe x Einsteckende) 67 1604067 66.7 34 82 100
1 Muffe (Muffe x Einsteckende) 76.1 1604076 76.1 38 88 105
1 Muffe (Muffe x Einsteckende) 88.9 1604089 88.9 45 101 119

Features
  • Areas of application according to Sanha: drinking water, heating and cooling, compressed air with residual oil content up to 25 mg/m³, technical gases and shipbuilding.
  • Marking on the fitting according to Sanha: manufacturer, dimension and DVGW approval mark; no additional coloured external marking.
  • Leak path feature: connections accidentally left unpressed are detected during the leak test. Sanha states test pressures of 1 to 6.5 bar with water or 150 mbar to 3 bar with air for this.
  • For technical gases, the maximum operating pressure is 16 bar according to Sanha.
  • 2 sockets: DVGW type examination certificate DW-8511AU2076 for SANHA-Press S6000, press and transition fittings made of copper for copper pipes according to DVGW GW 392, leaky when unpressed up to 54 mm (test basis DVGW W 534), valid until 11.03.2029. For the design 45° bend, female ends, the certificate lists the dimensions 15, 22, 28, 35, 42, 54, 67, 76 and 108 mm.
  • DVGW certificate of conformity hygiene HW-1001DQ0143 for SANHA-Press press fittings (series 6000) made of copper CW024A (Cu-DHP) for drinking water installations, valid until 25.03.2030.
  • TÜV component approval TÜV.K.23-001 for the press fitting connection of Sanha press fitting and system pipe (types include Sanha Press), valid until 30.11.2028.
  • 1 socket (socket x spigot): DVGW type examination certificate DW-8511AU2076 for SANHA-Press S6000, press and transition fittings made of copper for copper pipes according to DVGW GW 392, leaky when unpressed up to 54 mm (test basis DVGW W 534), valid until 11.03.2029. For the design 45° bend with male end, the certificate lists the dimensions 15, 22, 28, 35, 42 and 54 mm.
