Sanha  |  SKU: 143311238

Sanha RG Union, Flat or Conical Sealing

2399 €
Tax included Shipping calculated at checkout.
● Delivery time: 5 to 10 business days
 ● Shipping: Germany €4.99, free from €100; EU €19.99
✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately
  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Sanha RG union is a copper alloy (gunmetal) union of the Sanha series 4000 (capillary solder and transition fittings for copper pipes), available with solder connection and male thread, solder connection and female thread or solder connection at both ends, each flat or conical sealing.

The versions in detail

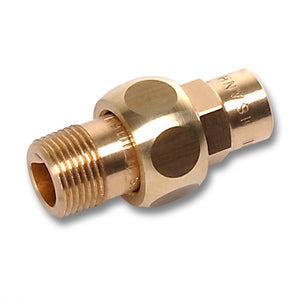

male thread: Sanha RG Union Male Thread is a union with solder connection and male thread from the Sanha series 4000 (capillary solder and transition fittings for copper pipes) and, according to Sanha, is made of copper alloy (gunmetal). Available are the flat-sealing version with flat gasket and the conical-sealing version. According to Sanha, the male thread is either an insert part (catalogue number 4331G flat sealing, 4341G conical sealing) or a screw-in part (catalogue number 4333G flat sealing, 4343G conical sealing); both versions can be selected under Connection.

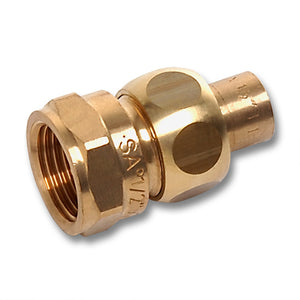

female thread: Sanha RG Union Female Thread is a union with solder connection and female thread from the Sanha series 4000 (capillary solder and transition fittings for copper pipes) and, according to Sanha, is made of copper alloy (gunmetal). Available are the flat-sealing version with flat gasket and the conical-sealing version.

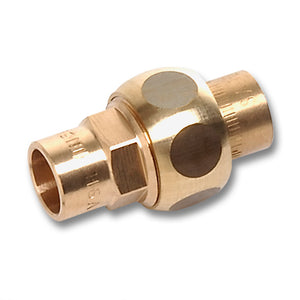

solder both ends: Sanha RG Union is a union with solder connection at both ends from the Sanha series 4000 (capillary solder and transition fittings for copper pipes) and, according to Sanha, is made of copper alloy (gunmetal). Available are the flat-sealing version with flat gasket and the conical-sealing version.

Technical data
Material copper alloy (gunmetal) CC499K (according to Sanha)
Union nut brass (according to Sanha)
Standard complies with EN 1254-1 (according to Sanha)
Testing tested according to DVGW GW 6 (according to Sanha)
Suitable pipes copper pipes according to EN 1057 (according to Sanha)
Soldering method soft soldering and brazing (according to Sanha)

Data per version:

Feature male thread female thread solder both ends
Thread pipe thread R/Rp according to EN 10226 (according to Sanha) pipe thread R/Rp according to EN 10226 (according to Sanha) not specified
Dimensions not specified not specified d 12 to 54 mm

Note on variants

Select connection, sealing type and size. Not every combination is available.

Connection Sealing type Size Item number System Flat gasket d R L SW1 SW2 z Version according to data sheet Rp
male thread, insert part flat sealing 12x3/8 143311238 Sanha series 4000, catalogue number 4331G Centellen (according to Sanha) 12 3/8 48 16 24 38 insert part
male thread, insert part flat sealing 15 x 1/2 143311512 Sanha series 4000, catalogue number 4331G Centellen (according to Sanha) 15 1/2 55 18 30 44 insert part
male thread, insert part flat sealing 16x1/2 143311612 Sanha series 4000, catalogue number 4331G Centellen (according to Sanha) 16 1/2 55 18 30 44 insert part
male thread, insert part flat sealing 18 x 1/2 143311812 Sanha series 4000, catalogue number 4331G Centellen (according to Sanha) 18 1/2 55 22 30 42 insert part
male thread, insert part flat sealing 18x3/4 143311834 Sanha series 4000, catalogue number 4331G Centellen (according to Sanha) 18 3/4 58 22 37 45 insert part
male thread, insert part flat sealing 22x1 14331221 Sanha series 4000, catalogue number 4331G Centellen (according to Sanha) 22 1 64 27 46 48 insert part
male thread, insert part flat sealing 22x1/2 143312212 Sanha series 4000, catalogue number 4331G Centellen (according to Sanha) 22 1/2 62 25 30 46 insert part
male thread, insert part flat sealing 22x3/4 143312234 Sanha series 4000, catalogue number 4331G Centellen (according to Sanha) 22 3/4 58 26 37 41 insert part
male thread, insert part flat sealing 28x1 14331281 Sanha series 4000, catalogue number 4331G Centellen (according to Sanha) 28 1 65 34 46 46 insert part
male thread, insert part flat sealing 35x1 1/4 1433135114 Sanha series 4000, catalogue number 4331G Centellen (according to Sanha) 35 1 1/4 74 40 52 51 insert part
male thread, insert part flat sealing 42 x 1 1/2 1433142112 Sanha series 4000, catalogue number 4331G Centellen (according to Sanha) 42 1 1/2 80 46 59 53 insert part
male thread, insert part flat sealing 54x2 14331542 Sanha series 4000, catalogue number 4331G Centellen (according to Sanha) 54 2 93 60 75 61 insert part
male thread, insert part flat sealing 64x2 1/2 1433164212 Sanha series 4000, catalogue number 4331G Centellen (according to Sanha) 64 2 1/2 104 72 94 69 insert part
male thread, screw-in part flat sealing 15x1/2 143331512 Sanha series 4000, catalogue number 4333G Centellen (according to Sanha) 15 1/2 51 30 22 37 screw-in part
male thread, screw-in part flat sealing 18x1/2 143331812 Sanha series 4000, catalogue number 4333G Centellen (according to Sanha) 18 1/2 49 30 22 36 screw-in part
male thread, screw-in part flat sealing 22x1 14333221 Sanha series 4000, catalogue number 4333G Centellen (according to Sanha) 22 1 59 37 34 43 screw-in part
male thread, screw-in part flat sealing 22x3/4 143332234 Sanha series 4000, catalogue number 4333G Centellen (according to Sanha) 22 3/4 55 37 27 39 screw-in part
male thread, screw-in part flat sealing 28x1 14333281 Sanha series 4000, catalogue number 4333G Centellen (according to Sanha) 28 1 67 46 34 48 screw-in part
male thread, screw-in part flat sealing 35x1 1/4 1433335114 Sanha series 4000, catalogue number 4333G Centellen (according to Sanha) 35 1 1/4 84 52 46 61 screw-in part
male thread, screw-in part flat sealing 42x1 1/2 1433342112 Sanha series 4000, catalogue number 4333G Centellen (according to Sanha) 42 1 1/2 90 59 50 63 screw-in part
male thread, screw-in part flat sealing 54x2 14333542 Sanha series 4000, catalogue number 4333G Centellen (according to Sanha) 54 2 104 75 60 72 screw-in part
male thread, insert part conical sealing 12x1/2 143411212 Sanha series 4000, catalogue number 4341G 12 1/2 53 16 30 43 insert part
male thread, insert part conical sealing 12x1/4 143411214 Sanha series 4000, catalogue number 4341G 12 1/4 47 16 24 37 insert part
male thread, insert part conical sealing 12x3/8 143411238 Sanha series 4000, catalogue number 4341G 12 3/8 47 16 24 37 insert part
male thread, insert part conical sealing 15 x 1/2 143411512 Sanha series 4000, catalogue number 4341G 15 1/2 54 19 30 43 insert part
male thread, insert part conical sealing 15x3/4 143411534 Sanha series 4000, catalogue number 4341G 15 3/4 59 19 37 48 insert part
male thread, insert part conical sealing 15x3/8 143411538 Sanha series 4000, catalogue number 4341G 15 3/8 47 19 24 36 insert part
male thread, insert part conical sealing 16x1/2 143411612 Sanha series 4000, catalogue number 4341G 16 1/2 54 19 30 43 insert part
male thread, insert part conical sealing 18 x 1/2 143411812 Sanha series 4000, catalogue number 4341G 18 1/2 54 22 30 41 insert part
male thread, insert part conical sealing 18x3/4 143411834 Sanha series 4000, catalogue number 4341G 18 3/4 58 22 37 44 insert part
male thread, insert part conical sealing 22x1 14341221 Sanha series 4000, catalogue number 4341G 22 1 63 27 46 42 insert part
male thread, insert part conical sealing 22x1/2 143412212 Sanha series 4000, catalogue number 4341G 22 1/2 57 26 30 41 insert part
male thread, insert part conical sealing 22x3/4 143412234 Sanha series 4000, catalogue number 4341G 22 3/4 58 26 37 41 insert part
male thread, insert part conical sealing 28x1 14341281 Sanha series 4000, catalogue number 4341G 28 1 64 34 46 45 insert part
male thread, insert part conical sealing 35x1 1/4 1434135114 Sanha series 4000, catalogue number 4341G 35 1 1/4 73 40 52 50 insert part
male thread, insert part conical sealing 42 x 1 1/2 1434142112 Sanha series 4000, catalogue number 4341G 42 1 1/2 79 46 59 52 insert part
male thread, insert part conical sealing 54x2 14341542 Sanha series 4000, catalogue number 4341G 54 2 92 60 75 60 insert part
male thread, insert part conical sealing 76.1 x 2 1/2 1434176212 Sanha series 4000, catalogue number 4341G 76.1 2 1/2 105 83 94 69 insert part
male thread, insert part conical sealing 88.9x3 14341893 Sanha series 4000, catalogue number 4341G 88.9 3 163 97 110 123 insert part
male thread, screw-in part conical sealing 12x1/2 143431212 Sanha series 4000, catalogue number 4343G 12 1/2 52 24 22 42 screw-in part
male thread, screw-in part conical sealing 15x1/2 143431512 Sanha series 4000, catalogue number 4343G 15 1/2 57 30 22 45 screw-in part
male thread, screw-in part conical sealing 18x1/2 143431812 Sanha series 4000, catalogue number 4343G 18 1/2 54 30 22 41 screw-in part
male thread, screw-in part conical sealing 18x3/4 143431834 Sanha series 4000, catalogue number 4343G 18 3/4 59 30 27 46 screw-in part
male thread, screw-in part conical sealing 22x3/4 143432234 Sanha series 4000, catalogue number 4343G 22 3/4 56 37 27 39 screw-in part
male thread, screw-in part conical sealing 28x1 14343281 Sanha series 4000, catalogue number 4343G 28 1 72 46 34 53 screw-in part
male thread, screw-in part conical sealing 35x1 1/4 1434335114 Sanha series 4000, catalogue number 4343G 35 1 1/4 91 52 46 68 screw-in part
male thread, screw-in part conical sealing 42x1 1/2 1434342112 Sanha series 4000, catalogue number 4343G 42 1 1/2 98 59 50 71 screw-in part
male thread, screw-in part conical sealing 54x2 14343542 Sanha series 4000, catalogue number 4343G 54 2 110 75 60 76 screw-in part
male thread, screw-in part conical sealing 64x2 1/2 1434364212 Sanha series 4000, catalogue number 4343G 64 2 1/2 113 89 77 79 screw-in part
male thread, screw-in part conical sealing 76.1 x 2 1/2 1434376212 Sanha series 4000, catalogue number 4343G 76.1 2 1/2 101 110 80 67 screw-in part
female thread flat sealing 12x3/8 143301238 Sanha series 4000, catalogue number 4330G Centellen (according to Sanha) 12 41 24 20 20 3/8
female thread flat sealing 15 x 1/2 143301512 Sanha series 4000, catalogue number 4330G Centellen (according to Sanha) 15 45 30 25 31 1/2
female thread flat sealing 15x3/4 143301534 Sanha series 4000, catalogue number 4330G Centellen (according to Sanha) 15 51 30 30 35 3/4
female thread flat sealing 18 x 1/2 143301812 Sanha series 4000, catalogue number 4330G Centellen (according to Sanha) 18 43 30 25 29 1/2
female thread flat sealing 18x3/4 143301834 Sanha series 4000, catalogue number 4330G Centellen (according to Sanha) 18 49 30 30 33 3/4
female thread flat sealing 22x1 14330221 Sanha series 4000, catalogue number 4330G Centellen (according to Sanha) 22 52 37 39 33 1
female thread flat sealing 22x3/4 143302234 Sanha series 4000, catalogue number 4330G Centellen (according to Sanha) 22 51 37 30 34 3/4
female thread flat sealing 28x1 14330281 Sanha series 4000, catalogue number 4330G Centellen (according to Sanha) 28 59 46 39 40 1
female thread flat sealing 35x1 1/4 1433035114 Sanha series 4000, catalogue number 4330G Centellen (according to Sanha) 35 63 52 46 42 1 1/4
female thread flat sealing 42 x 1 1/2 1433042112 Sanha series 4000, catalogue number 4330G Centellen (according to Sanha) 42 75 59 46 56 1 1/2
female thread flat sealing 54x2 14330542 Sanha series 4000, catalogue number 4330G Centellen (according to Sanha) 54 84 75 70 29 2
female thread conical sealing 15 x 1/2 143401512 Sanha series 4000, catalogue number 4340G 15 45 30 25 18 1/2
female thread conical sealing 15x3/4 143401534 Sanha series 4000, catalogue number 4340G 15 51 30 30 23 3/4
female thread conical sealing 15x3/8 143401538 Sanha series 4000, catalogue number 4340G 15 51 30 30 23 3/8
female thread conical sealing 18 x 1/2 143401812 Sanha series 4000, catalogue number 4340G 18 42 30 25 14 1/2
female thread conical sealing 18x3/4 143401834 Sanha series 4000, catalogue number 4340G 18 48 30 30 20 3/4
female thread conical sealing 22x1 14340221 Sanha series 4000, catalogue number 4340G 22 51 37 39 12 1
female thread conical sealing 22x1/2 143402212 Sanha series 4000, catalogue number 4340G 22 45 37 26 32 1/2
female thread conical sealing 22x3/4 143402234 Sanha series 4000, catalogue number 4340G 22 50 37 30 16 3/4
female thread conical sealing 28x1 14340281 Sanha series 4000, catalogue number 4340G 28 57 46 39 19 1
female thread conical sealing 35x1 1/4 1434035114 Sanha series 4000, catalogue number 4340G 35 62 52 46 18 1 1/4
female thread conical sealing 42 x 1 1/2 1434042112 Sanha series 4000, catalogue number 4340G 42 73 59 54 25 1 1/2
female thread conical sealing 54x2 14340542 Sanha series 4000, catalogue number 4340G 54 79 75 66 18 2
solder connection both ends flat sealing 12 1433012 Sanha series 4000, catalogue number 4330 Centellen (according to Sanha) 12 40 30 16 20
solder connection both ends flat sealing 15 1433015 Sanha series 4000, catalogue number 4330 Centellen (according to Sanha) 15 44 30 22 21
solder connection both ends flat sealing 18 1433018 Sanha series 4000, catalogue number 4330 Centellen (according to Sanha) 18 44 30 22 18
solder connection both ends flat sealing 22 1433022 Sanha series 4000, catalogue number 4330 Centellen (according to Sanha) 22 44 37 26 11
solder connection both ends flat sealing 28 1433028 Sanha series 4000, catalogue number 4330 Centellen (according to Sanha) 28 54 46 34 16
solder connection both ends flat sealing 35 1433035 Sanha series 4000, catalogue number 4330 Centellen (according to Sanha) 35 60 52 40 14
solder connection both ends flat sealing 42 1433042 Sanha series 4000, catalogue number 4330 Centellen (according to Sanha) 42 72 59 46 18
solder connection both ends flat sealing 54 1433054 Sanha series 4000, catalogue number 4330 Centellen (according to Sanha) 54 82 75 60 18
solder connection both ends conical sealing 12 1434012 Sanha series 4000, catalogue number 4340 12 42 24 16 22
solder connection both ends conical sealing 15 1434015 Sanha series 4000, catalogue number 4340 15 46 30 25 33
solder connection both ends conical sealing 18 1434018 Sanha series 4000, catalogue number 4340 18 43 30 22 17
solder connection both ends conical sealing 22 1434022 Sanha series 4000, catalogue number 4340 22 45 37 26 11
solder connection both ends conical sealing 28 1434028 Sanha series 4000, catalogue number 4340 28 54 46 34 16
solder connection both ends conical sealing 35 1434035 Sanha series 4000, catalogue number 4340 35 61 52 40 15
solder connection both ends conical sealing 42 1434042 Sanha series 4000, catalogue number 4340 42 72 59 46 18
solder connection both ends conical sealing 54 1434054 Sanha series 4000, catalogue number 4340 54 81 75 60 15

Features
  • Areas of application according to Sanha (technical submittal series 4000): drinking water, heating and cooling, refrigeration systems, gas installations, solar systems, compressed air and technical gases.
  • Marking on the fitting according to Sanha: manufacturer (SA) and dimension.
  • DVGW type examination certificate DV-7401BO0047 for capillary solder fittings made of gunmetal, model S 4000, product category threaded, capillary solder and transition fittings made of copper alloys according to DVGW GW 6 (test basis DVGW GW 6), valid until 24.02.2028.
  • DVGW certificate of conformity hygiene HW-1001DQ0148 for components made of CC499K, solder fittings SA (series 4000), for drinking water installations, valid until 14.03.2030.

Data sheets and manuals (PDF)
