Sanha | SKU: 39401534

Sanha Pump Connection Union

Name: Sanha Pump Connection Union
Brand: Sanha
SKU: 39401534
Price: 42.49 EUR
Availability: InStock

42^{49 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Sanha pump connection union is, according to Sanha, a copper alloy pump connection union for domestic water pumps, supplied as a set of two tailpieces and two union nuts. Available connections are solder socket (gunmetal), male thread x solder socket (brass), male thread, female thread and the set with SANHA-Press press connection, each with or without flat gaskets where available.

The versions in detail

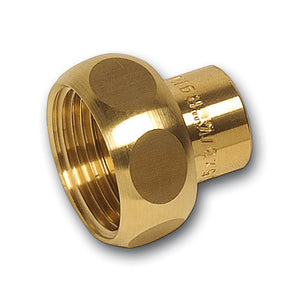

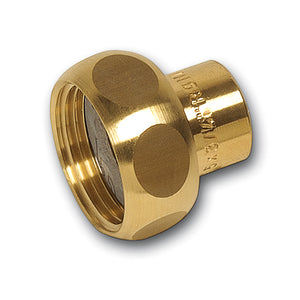

RG solder: Sanha RG pump connection union solder is, according to Sanha, a pump connection union made of copper alloy for domestic water pumps. A set consists of two tailpieces with solder socket and two union nuts. The set is available with two flat gaskets or without gaskets.

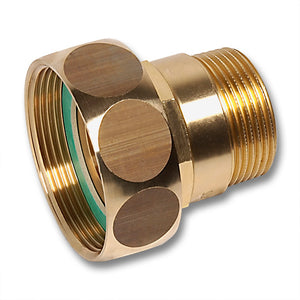

MS male x solder: Sanha pump connection union, male thread x solder socket is, according to Sanha, a pump connection union made of copper alloy for domestic water pumps. A set consists of 2 tailpieces with solder socket and male thread according to DIN EN 10226-1 and 2 union nuts made of copper alloy. The set is available with 2 flat gaskets (according to Sanha up to 200 °C, DVGW-tested, asbestos-free) or without gaskets.

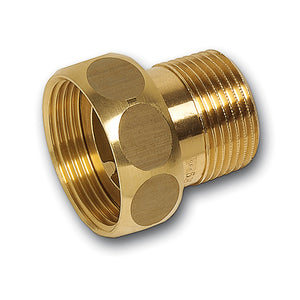

male thread: Sanha pump connection union with male thread is, according to Sanha, a pump connection union made of copper alloy for domestic water pumps. A set consists of two tailpieces with male thread and two union nuts. The set is available with two flat gaskets or without gaskets.

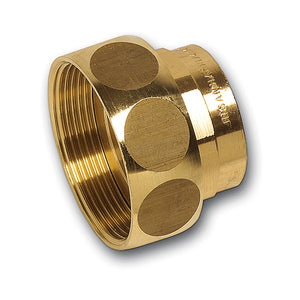

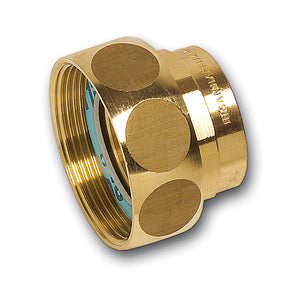

female thread: Sanha pump connection union with female thread is, according to Sanha, a pump connection union made of copper alloy for domestic water pumps. A set consists of two tailpieces with female thread and two union nuts. The set is available with two flat gaskets or without gaskets.

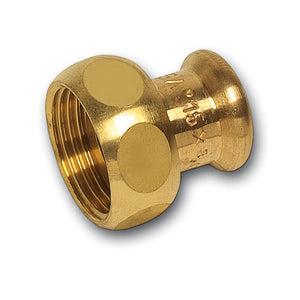

SANHA-Press set: Sanha pump connection union set SANHA-Press, without flat gaskets is, according to Sanha, a pump connection union set consisting of two flat-sealing half unions with universal press end and fastening thread. The union nuts are made of brass, the fittings of lead-free, silicon-containing copper alloy; flat gaskets are not included in the scope of delivery.

Technical data

Data per version:

Feature	RG solder	MS male x solder	male thread	female thread	SANHA-Press set
Use	connection of domestic water pumps (according to Sanha)	not specified	connection of domestic water pumps (according to Sanha)	connection of domestic water pumps (according to Sanha)	not specified
Material	copper alloy (according to Sanha)	copper alloy (according to Sanha)	copper alloy (according to Sanha)	copper alloy (according to Sanha)	lead-free, silicon-containing copper alloy; union nut brass (according to Sanha)
Thread	not specified	male thread according to DIN EN 10226-1 (according to Sanha)	not specified	not specified	not specified
Catalogue number	not specified	not specified	not specified	not specified	971
Scope of delivery	not specified	not specified	not specified	not specified	2 half unions, flat sealing, without flat gaskets (according to Sanha)
Sealing ring	not specified	not specified	not specified	not specified	EPDM, black, factory-fitted (according to Sanha)
Testing	not specified	not specified	not specified	not specified	connection tested according to DVGW W 534 (according to Sanha)

Note on variants

Select connection, gasket and size. Not every combination is available.

Connection	Gasket	Size	Item number	Catalogue number
solder socket (gunmetal)	without gaskets	15x3/4	39401534	940
solder socket (gunmetal)	without gaskets	18x3/4	39401834	940
solder socket (gunmetal)	without gaskets	22x1	3940221	940
solder socket (gunmetal)	without gaskets	22x1 1/2	394022112	940
solder socket (gunmetal)	without gaskets	22x1 1/4	394022114	940
solder socket (gunmetal)	without gaskets	28x1 1/2	394028112	940
solder socket (gunmetal)	without gaskets	28x1 1/4	394028114	940
solder socket (gunmetal)	with gaskets	15x3/4	39301534	930
solder socket (gunmetal)	with gaskets	18x3/4	39301834	930
solder socket (gunmetal)	with gaskets	22x1	3930221	930
solder socket (gunmetal)	with gaskets	22x1 1/2	393022112	930
solder socket (gunmetal)	with gaskets	28x1 1/4	393028114	930
male thread x solder socket (brass)	with gaskets	1 1/4x35x2	3950114352	950
male thread x solder socket (brass)	with gaskets	1/2x15x1	395012151	950
male thread x solder socket (brass)	with gaskets	1/2x15x1 1/4	39501215114	950
male thread x solder socket (brass)	with gaskets	1x28x1 1/2	3950128112	950
male thread x solder socket (brass)	without gaskets	1 1/4x35x2	3960114352	960
male thread x solder socket (brass)	without gaskets	1/2x15x1	396012151	960
male thread x solder socket (brass)	without gaskets	1/2x15x1 1/4	39601215114	960
male thread x solder socket (brass)	without gaskets	1x28x1 1/2	3960128112	960
male thread	without gaskets	1x1 1/4	39451114	945
male thread	without gaskets	1 1/4x1 1/2	3945114112	945
male thread	without gaskets	3/4x1	3945341	945
male thread	with gaskets	1x1 1/4	39461114	946
male thread	with gaskets	3/4x1	3946341	946
female thread	with gaskets	1x1 1/2	39421112	942
female thread	with gaskets	1 1/4x2	39421142	942
female thread	with gaskets	1/2 x 1	3942121	942
female thread	with gaskets	3/4 x 1 1/4	394234114	942
female thread	without gaskets	1x1 1/2	39411112	941
female thread	without gaskets	1 1/4x2	39411142	941
female thread	without gaskets	1/2 x 1	3941121	941
female thread	without gaskets	3/4 x 1 1/4	394134114	941
SANHA-Press press connection (set)	without gaskets	15x1	3971151
SANHA-Press press connection (set)	without gaskets	22x1 1/2	397122112

Data sheets and manuals (PDF)
