Sanha RefHP CuFe2P Coupling

Name: Sanha RefHP CuFe2P Coupling
Brand: Sanha
SKU: 12927038
Price: 3.49 EUR
Availability: InStock

3^{49 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Version

Size

Product variants

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Sanha RefHP CuFe2P Coupling combines the following versions in one product: coupling, coupling, socket x spigot. Select the required version under Version and then the matching variant under Size. The details for each version are given below.

The versions in detail

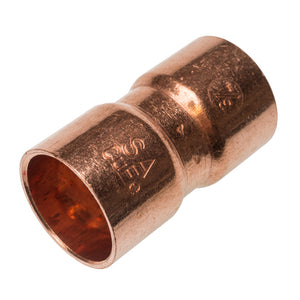

coupling: Sanha RefHP CuFe2P coupling is a coupling with solder ends on both sides. The item belongs to the Sanha RefHP brazing fitting system (series 29000) made of copper-iron alloy CuFe2P. According to Sanha, the fittings are intended for copper-iron pipes in transcritical high-pressure installations such as carbon dioxide refrigeration systems.

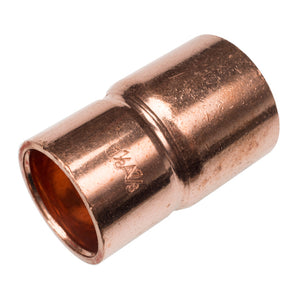

coupling, socket x spigot: Sanha RefHP CuFe2P coupling, female x male end is a coupling with solder end and female solder end. The item belongs to the Sanha RefHP brazing fitting system (series 29000) made of copper-iron alloy CuFe2P. According to Sanha, the fittings are intended for copper-iron pipes in transcritical high-pressure installations such as carbon dioxide refrigeration systems.

Technical data

Material	CuFe2P, material no. CW107C according to EN 12449 (according to Sanha)
Dimensions	inch dimensions according to ASTM B280 (according to Sanha)
Pipes	for pipes according to EN 378-2 and EN 14276-2 Annex B (according to Sanha)
Suitable pipes	copper-iron pipes KME CL12, HALCOR TALOS XS, Wieland K65 and Mueller XHP (according to Sanha)
Max. allowable operating pressure	130 bar (according to the Sanha declaration of conformity)
Temperature	-196 to 150 °C (according to the Sanha declaration of conformity)
Manufacture	according to AD 2000 data sheet W 6/2 from pipes according to VdTÜV material data sheet 567 with inspection certificate 3.1 according to EN 10204 (according to Sanha)

Data per version:

Feature	coupling	coupling, socket x spigot
System	RefHP, series 29000, catalogue number 29270	RefHP, series 29000, catalogue number 29245
Design	coupling, solder ends on both sides	coupling, with solder end and female solder end

Note on variants

Select version and size. Not every combination is available.

Version	Size	Item number	d	L	z
Muffe	1 1/8	129270118	28.57	52	14
Muffe	1/2	12927012	12.7	28	9
Muffe	1 3/8	129270138	34.92	63	17
Muffe	1 5/8	129270158	41.27	65	19
Muffe	2 1/8	129270218	53.97	83	27
Muffe	2 5/8	129270258	66.68	97	37
Muffe	3/4	12927034	19.05	38	11
Muffe	3/8	12927038	9.52	24	7
Muffe	5/8	12927058	15.87	32	9
Muffe	7/8	12927078	22.23	44	12
Muffe, i x a	1 1/8	129245118	28.57	56	36
Muffe, i x a	1 3/8	129245138	34.92	67	44
Muffe, i x a	1 5/8	129245158	41.27	68	45
Muffe, i x a	2 1/8	129245218	53.97	88	60
Muffe, i x a	3/4	12924534	19.05	40	27
Muffe, i x a	7/8	12924578	22.23	47	31

Features

Areas of application according to Sanha: refrigeration systems with carbon dioxide and high-pressure applications; according to the declaration of conformity, piping in refrigeration systems for fluids of group 2 according to the Pressure Equipment Directive 2014/68/EU.
Marking according to Sanha: "SA CuFe" and dimension engraved in the fitting; according to Sanha, the material marking remains visible after brazing.
coupling: EU declaration of conformity by Sanha according to the Pressure Equipment Directive 2014/68/EU for SANHA-RefHP (Essen, 29.09.2026); the product overview of the declaration lists the article numbers of this item.
coupling, socket x spigot: EU declaration of conformity by Sanha according to the Pressure Equipment Directive 2014/68/EU for SANHA-RefHP (Essen, 29.09.2026); the product overview of the declaration lists the article numbers of this item, except 129245218.
