Sanha PURAPRESS Elbow with Male or Female Thread

Name: Sanha PURAPRESS Elbow with Male or Female Thread
Brand: Sanha
SKU: 180901238
Price: 9.49 EUR
Availability: InStock

9^{49 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Sanha PURAPRESS Elbow with Male or Female Thread combines the following versions in one product: female thread, male thread. Select the required version under Connection and then the matching variant under Size. The details for each version are given below.

The versions in detail

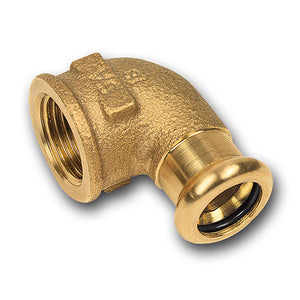

female thread: Sanha PURAPRESS elbow with female thread is a 90° elbow with universal press end and female thread. The item belongs to the PURAPRESS range (series 8000) of the Sanha SANHA-Press | PURAPRESS press fitting system and, according to Sanha, is made of lead-free, silicon-containing copper alloy. According to Sanha, PURAPRESS fittings are used as transition fittings for copper and stainless steel pipes.

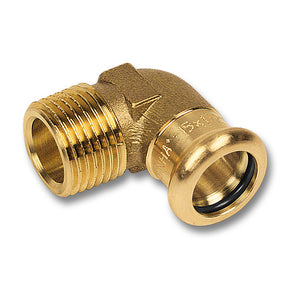

male thread: Sanha PURAPRESS elbow with male thread is a 90° elbow with universal press end and male thread. The item belongs to the PURAPRESS range (series 8000) of the Sanha SANHA-Press | PURAPRESS press fitting system and, according to Sanha, is made of lead-free, silicon-containing copper alloy. According to Sanha, PURAPRESS fittings are used as transition fittings for copper and stainless steel pipes.

Technical data

Material	lead-free silicon bronze CuZn21Si3P, material no. CW724R-DW (according to the Sanha installation information)
Sealing ring	EPDM, black, factory-fitted
Nominal pressure	PN 16 (according to Sanha)
Max. continuous temperature	-30 to 120 °C, briefly up to 150 °C (according to Sanha)
Testing	connection tested according to DVGW W 534 (according to Sanha)
Press tool	up to 54 mm with press jaws of the SA, V or M original profile (according to Sanha)
Thread	pipe thread R/Rp according to EN 10226 or ISO 7/1 (according to Sanha)
Dimensions	d 12 to 54 mm
Suitable pipes	copper pipes according to EN 1057 or DVGW GW 392 and the Sanha stainless steel pipes NiroSan F (1.4521), NiroSan ECO and NiroSan (1.4404) and NiroTherm (1.4301) (according to the Sanha installation information)

Data per version:

Feature	female thread	male thread
System	SANHA-Press \| PURAPRESS, series 8000, catalogue number 8090G	SANHA-Press \| PURAPRESS, series 8000, catalogue number 8092G
Design	elbow 90°, with universal press end and female thread	elbow 90°, with universal press end and male thread

Note on variants

Select connection and size. Not every combination is available.

Connection	Size	Item number	a	b	d	Rp	SW	z1	z2	R
Innengewinde	12x1/2	180901212	30	22	12	1/2	26	14	9
Innengewinde	12x3/8	180901238	27	18	12	3/8	22	11	8
Innengewinde	14x1/2	180901412	33	23	14	1/2	26	14.9	10
Innengewinde	15x1/2	180901512	33	23	15	1/2	26	15	8
Innengewinde	15x3/4	180901534	36	27	15	3/4	32	18	11
Innengewinde	15x3/8	180901538	33	19	15	3/8	26	15	8
Innengewinde	16 x 1/2	180901612	33	23	16	1/2	26	15	10
Innengewinde	18x1/2	180901812	33	25	18	1/2	26	13	10
Innengewinde	18 x 3/4	180901834	36	27	18	3/4	32	16	11
Innengewinde	22x1	18090221	44	30	22	1	39	20	13
Innengewinde	22x1/2	180902212	37	27	22	1/2	26	13	12
Innengewinde	22x3/4	180902234	40	29	22	3/4	32	16	13
Innengewinde	28x1	18090281	46	33	28	1	39	19	14
Innengewinde	28x1/2	180902812	46	29	28	1/2	39	19	18
Innengewinde	28x3/4	180902834	46	30.5	28	3/4	39	19	14
Innengewinde	35x1 1/4	1809035114	57	42	35	1 1/4	49	25	20
Innengewinde	42 x 1 1/2	1809042112	65	45	42	1 1/2	55	27	23
Innengewinde	54x2	18090542	78	55	54	2	68	36	31
Außengewinde	12x1/2	180921212	26	25	12		19	10		1/2
Außengewinde	12x3/8	180921238	25	22	12		17	9		3/8
Außengewinde	14x1/2	180921412	27	26	14		20	9		1/2
Außengewinde	15x1/2	180921512	27	26	15		20	9		1/2
Außengewinde	16 x 1/2	180921612	30	28	16		20	12		1/2
Außengewinde	18x1/2	180921812	30	28	18		20	10		1/2
Außengewinde	18 x 3/4	180921834	35	33	18		26	15		3/4
Außengewinde	22x1	18092221	42	38	22		32	18		1
Außengewinde	22x1/2	180922212	36	33	22		26	12		1/2
Außengewinde	22x3/4	180922234	36	33	22		26	12		3/4
Außengewinde	28x1	18092281	42	38	28		32	15		1
Außengewinde	35x1 1/4	1809235114	52	45	35		40	20		1 1/4
Außengewinde	42 x 1 1/2	1809242112	59	48	42		45	21.5		1 1/2
Außengewinde	54x2	18092542	70	59	54		58	27.5		2

Features

Areas of application according to Sanha: drinking water, heating and cooling, compressed air with residual oil content up to 25 mg/m³, technical gases and shipbuilding.
Marking on the fitting according to Sanha: manufacturer, dimension and DVGW approval mark; no additional coloured external marking.
Leak path feature: connections accidentally left unpressed are detected during the leak test. Sanha states test pressures of 1 to 6.5 bar with water or 150 mbar to 3 bar with air for this.
For technical gases, the maximum operating pressure is 16 bar according to Sanha.
According to Sanha, PURAPRESS fittings are resistant to dezincification and free from stress corrosion cracking.
DVGW type examination certificate DW-8511CL0362 for press and transition connectors made of lead-free, silicon-containing copper alloy for copper pipes according to DVGW GW 392 and stainless steel pipes according to DVGW GW 541 (1.4404 and 1.4521), model SANHA-PURAPRESS S8000CuSi (test basis DVGW W 534), valid until 31.08.2030.
DVGW certificate of conformity hygiene HW-1001DQ0145 for PURAPRESS press fittings (series 8000) made of CW724R for drinking water installations, valid until 14.03.2030.
DVGW certificate of conformity hygiene HW-1011DQ0354 for the assembled product PURAPRESS press fittings (series 8000) for drinking water installations, valid until 14.03.2030.

Data sheets and manuals (PDF)
