InoxAir GmbH  |  SKU: HWB4040

InoxAir Hand Wash Basin and Slop Sink

25999 €
Tax included Shipping calculated at checkout.
● Delivery time: 5 to 10 working days
 ● Shipping: Germany €4.99, free from €100; EU €19.99
✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately
  • American Express
  • Apple Pay
  • Google Pay
  • Klarna
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa
  • Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

InoxAir Hand Wash Basin and Slop Sink combines the following versions in one product: hand wash basin, hand wash and slop sink. Select the required version under Version and then the matching variant under Size. The details for each version are given below.

The versions in detail

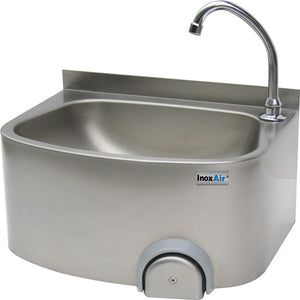

hand wash basin: InoxAir Hand Washbasin is an ECOline hand basin with drainage tap made of chromium-nickel steel. Water is dispensed at constant temperature via a mechanical push timer; depending on the variant, it is operated with the knee or with the knee or hand.

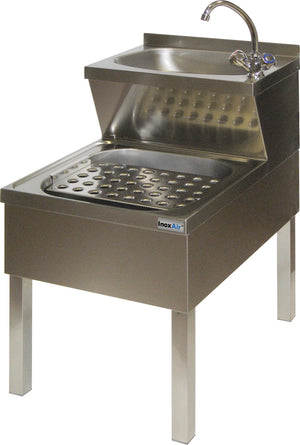

hand wash and slop sink: InoxAir Handwash and Slop Sink is an ECOline combination of hand basin and slop sink made of chromium-nickel steel. A hand basin with mixer tap is located at the top, below it a slop sink with a removable perforated plate.

Technical data
Line ECOline
Material chromium-nickel steel, material 1.4301 (AISI 304)
Source InoxAir catalogue Sinks and hygiene, pp. 318 and 319; inoxair.de; InoxAir catalogue Sinks and hygiene, p. 318

Data per version:

Feature hand wash basin hand wash and slop sink
Water outlet at constant temperature; pressure and mixing ratio are set on site not specified
Release mechanical push timer not specified
Operation knee (HWB4040, HWB4041, HWB5040, HWB4835) or knee or hand (HWB4836, HWB5048) not specified
Hand basin not specified at the top, with mixer tap (cold/warm setting), basin 370 x 280 x 130 mm
Slop sink not specified with removable perforated plate for placing containers
Front panel not specified below the hand basin, removable for sanitary installation and maintenance
External dimensions not specified 500 x 600 x 850 mm or 500 x 700 x 850 mm

Note on variants

Select version and size. Not every combination is available.

Version Size Item number External dimensions W x D x H Basin Upstand Operation Catalogue page Hand basin Slop sink
Handwaschbecken 480 x 350 x 220 mm, rectangular basin HWB4835 480 x 350 x 220 mm 430 x 280 x 130 mm 40 mm knee p. 319
Handwaschbecken 480 x 360 x 530 mm, rectangular basin, upstand 300 mm HWB4836 480 x 360 x 530 mm 430 x 280 x 130 mm 300 mm knee or hand p. 319
Handwaschbecken 500 x 400 x 200 mm, rectangular basin, upstand 100 mm HWB5040 500 x 400 x 200 mm 440 x 320 x 130 mm 100 mm, raised at the rear knee p. 318
Handwaschbecken 500 x 400 x 850 mm, cabinet version HWB5048 500 x 400 x 850 mm 440 x 320 x 130 mm 100 mm knee or hand p. 319
Handwaschbecken 400 x 400 x 200 mm, round basin HWB4040 400 x 400 x 200 mm round, Ø 340 mm 40 mm knee p. 318
Handwaschbecken 400 x 400 x 200 mm, round basin, upstand 100 mm HWB4041 400 x 400 x 200 mm round, Ø 340 mm 100 mm, raised at the rear knee p. 318
Handwasch- und Ausgussbecken 500 x 600 x 850 mm HWK5060 370 x 280 x 130 mm 405 x 240 x 170 mm
Handwasch- und Ausgussbecken 500 x 700 x 850 mm HWK5070 370 x 280 x 130 mm 405 x 340 x 170 mm

Features
  • hand wash basin: HWB series hand basins according to the InoxAir catalogue Sinks and hygiene (pp. 318 and 319).
  • hand wash basin: For the variants with knee operation, the catalogue states a dispensing time of 7 seconds per actuation.
  • hand wash basin: Cabinet version HWB5048 with hinged door.
  • hand wash basin: Rectangular or round basin, upstand 40 to 300 mm depending on the variant.
  • hand wash and slop sink: HWK series according to the InoxAir catalogue Sinks and hygiene, p. 318.
  • hand wash and slop sink: The perforated plate in the slop sink is removable and is used for placing containers.
  • hand wash and slop sink: According to the catalogue, wall mounting is possible.
