Sanha CU Bend 45°, 1 or 2 Sockets

Name: Sanha CU Bend 45°, 1 or 2 Sockets
Brand: Sanha
SKU: 150416
Price: 8.99 EUR
Availability: InStock

8^{99 €}

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 business days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original goods from the manufacturer
✓ Expert advice from building services specialists
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Invoice with VAT shown separately

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Sanha CU-Bend 45°, 1 or 2 Sockets combines the following versions in one product: 2 sockets, 1 socket (socket x spigot). Select the required version under Version and then the matching variant under Size. The details for each version are given below.

The versions in detail

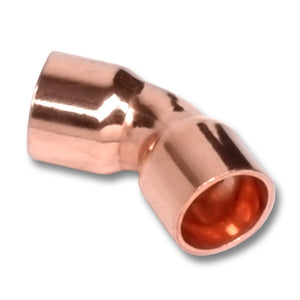

2 sockets: Sanha CU Bend 45°, 2 Sockets is a 45° copper bend with solder ends (sockets) on both sides. The item belongs to the Sanha series 5000 capillary solder fittings for joining copper pipes by soft or hard soldering.

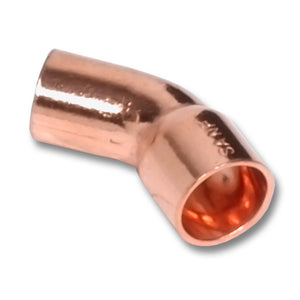

1 socket (socket x spigot): Sanha CU Bend 45°, 1 Socket is a 45° copper bend with one solder end (socket) and one male plain end. The item belongs to the Sanha series 5000 capillary solder fittings for joining copper pipes by soft or hard soldering.

Technical data

Material	copper Cu-DHP (CW024A)
Connection	capillary soldering (soft and hard soldering)
Suitable pipes	copper pipes according to EN 1057 (according to Sanha)
Standard	complies with EN 1254-1 (according to Sanha)
Test basis	tested according to DVGW GW 8 (according to Sanha)
Dimensions	d 6 to 108 mm
Marking on the fitting	manufacturer (SA) and dimension

Data per version:

Feature	2 sockets	1 socket (socket x spigot)
Series	Sanha capillary solder fittings series 5000, catalogue number 5041	Sanha capillary solder fittings series 5000, catalogue number 5040
Design	bend 45°, solder ends on both sides	bend 45° with solder end and male plain end

Note on variants

Select version and size. Not every combination is available.

Version	Size	Item number	d	L	z	L1	L2
2 Muffen	10	1504110	10	13	4
2 Muffen	108.0	15041108	108	112	61
2 Muffen	12	1504112	12	15	5
2 Muffen	14	1504114	14	18	6
2 Muffen	15	1504115	15	18	6
2 Muffen	16	1504116	16	19	7
2 Muffen	18	1504118	18	21	7
2 Muffen	22	1504122	22	26	9
2 Muffen	28	1504128	28	30	11
2 Muffen	32	1504132	32	35	13
2 Muffen	35	1504135	35	39	15
2 Muffen	40	1504140	40	40	12
2 Muffen	42	1504142	42	44	16
2 Muffen	52	1504152	52	62	21
2 Muffen	54	1504154	54	54	21
2 Muffen	6	150416	6	10	3
2 Muffen	64	1504164	64	67	33
2 Muffen	76.1	1504176	76.1	74	39
2 Muffen	8	150418	8	12	4
2 Muffen	88.9	1504189	88.9	84	45
1 Muffe (Muffe x Einsteckende)	10	1504010	10		4	13	15
1 Muffe (Muffe x Einsteckende)	108.0	15040108	108		61	112	115
1 Muffe (Muffe x Einsteckende)	12	1504012	12		5	15	17
1 Muffe (Muffe x Einsteckende)	14	1504014	14		6	18	18
1 Muffe (Muffe x Einsteckende)	15	1504015	15		6	18	20
1 Muffe (Muffe x Einsteckende)	16	1504016	16		7	19	21
1 Muffe (Muffe x Einsteckende)	18	1504018	18		7	21	23
1 Muffe (Muffe x Einsteckende)	22	1504022	22		9	26	28
1 Muffe (Muffe x Einsteckende)	28	1504028	28		11	30	32
1 Muffe (Muffe x Einsteckende)	32	1504032	32		13	35	37
1 Muffe (Muffe x Einsteckende)	35	1504035	35		15	39	41
1 Muffe (Muffe x Einsteckende)	40	1504040	40		12	40	42
1 Muffe (Muffe x Einsteckende)	42	1504042	42		16	44	46
1 Muffe (Muffe x Einsteckende)	52	1504052	52		20	53	55
1 Muffe (Muffe x Einsteckende)	54	1504054	54		21	54	56
1 Muffe (Muffe x Einsteckende)	6	150406	6		3	10	12
1 Muffe (Muffe x Einsteckende)	64	1504064	64		33	67	69
1 Muffe (Muffe x Einsteckende)	76.1	1504076	76.1		39	74	77
1 Muffe (Muffe x Einsteckende)	8	150408	8		4	12	14
1 Muffe (Muffe x Einsteckende)	80	1504080	80		41	77	80
1 Muffe (Muffe x Einsteckende)	88.9	1504089	88.9		45	84	87

Features

Areas of application according to Sanha (technical submittal series 5000): drinking water, heating and cooling, refrigeration systems, gas installations, solar systems, compressed air and technical gases. According to Sanha, operating pressure and operating temperature are governed by the applicable regulations.
According to Sanha, can be combined with all copper pipes according to EN 1057; Sanha also lists copper pipes according to EN 13349, EN 12735 and EN 13348.
DVGW type examination certificate DV-7411AO2009 for SANHA solder fittings (capillary solder fitting made of copper for copper pipes, test basis DVGW GW 8), valid until 17.07.2029.
DVGW certificate of conformity hygiene HW-1001DQ0144 for capillary solder fittings "SA" (series 5000) made of copper CW024A (Cu-DHP) for drinking water installations, valid until 12.02.2030.
