Blauberg Ventilatoren GmbH | SKU: 8051302

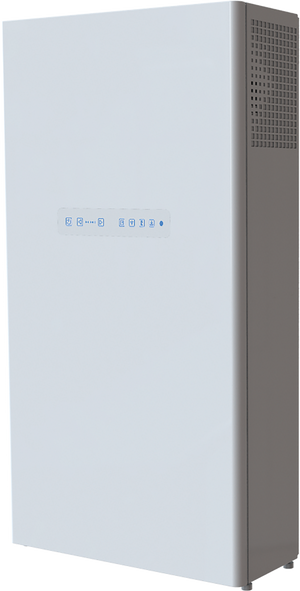

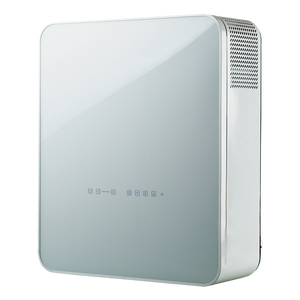

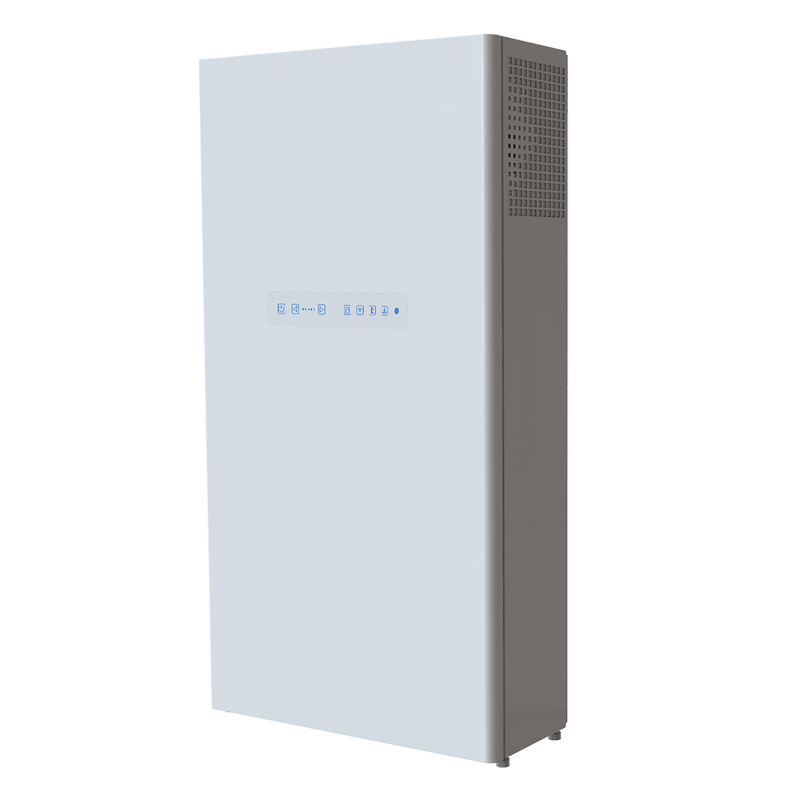

Blauberg Freshbox WiFi Decentralised Ventilation

Name: Blauberg Freshbox WiFi Decentralised Ventilation
Brand: Blauberg Ventilatoren GmbH
SKU: 8051302
Price: 2505.0 EUR
Availability: InStock

2.982^{54 €} ~~4.109^{49 €}~~

Product information sheet

Tax included Shipping calculated at checkout.

● Delivery time: 5 to 10 working days
● Shipping: Germany €4.99, free from €100; EU €19.99

✓ Original manufacturer unit, CE marked
✓ Quiet operation with the right sizing
✓ Pay by PayPal, card, Klarna or bank transfer
✓ Expert advice on choosing the right unit

Heater (code)

Size

Heat exchanger

Product variants

Request a quote

For business customers, larger quantities or projects, we will be happy to prepare a quote for you.

Bank transfer

You can also pay by bank transfer (prepayment). Bank details follow with the order confirmation.

Description

Blauberg Freshbox WiFi Decentralised Ventilation: Blauberg Freshbox WiFi decentralised ventilation units with heat recovery and Wi-Fi control. The suffix E stands for a built-in pre-heater, E1 for a post-heater and E2 for pre-heater and post-heater; ERV denotes the enthalpy heat exchanger. Selectable are heater, size and heat exchanger.

Technical data

Extract air filter	G4
Temperature of the conveyed air	-15 to 40 °C
Ambient temperature	1 to 40 °C

Data per variant:

Heater (code)	Size	Heat exchanger	Article number	Power supply	Maximum airflow	Maximum current consumption without heater	Speed	Supply air filter	Connection diameter	Housing	Weight	Degree of protection	Maximum ambient humidity	Sound power level	Specific energy consumption (SEC) class for average climate	Spigot size	Maximum current consumption	Thermal efficiency of heat recovery	Housing material	Insulation	Wall thickness	Preheater power consumption	Maximum current consumption with heater	Reheater power consumption
none	100	Enthalpy heat exchanger (ERV)	8050510	1 phase, 110 to 240 V, 50/60 Hz	100 m³/h	0.4 A	max. 2200 min⁻¹	G4 + F8 (optional F8 activated carbon or H13)	100 mm	polymer-coated steel, 10 mm insulation	31 kg	IP22 (motor IP44)	70%	47 dB(A)	A (scale A+ to G); SEC -38.3 kWh/(m²·a)	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a
none	100	Standard heat exchanger	8044861	1 phase, 110 to 240 V, 50/60 Hz	100 m³/h	0.4 A	max. 2200 min⁻¹	G4 + F8 (optional F8 activated carbon or H13)	100 mm	polymer-coated steel, 10 mm insulation	31 kg	IP22 (motor IP44)	70%	47 dB(A)	A (scale A+ to G); SEC -39.7 kWh/(m²·a)	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a	n/a
none	200	Enthalpy heat exchanger (ERV)	8051302	1 phase, 230 V, 50/60 Hz	200 m³/h	n/a	2000 min⁻¹	G4 + F7 (H13 optional)	n/a	n/a	55 kg	IP22, motor IP44	60%	36 dB(A)	A (scale A+ to G); SEC -35.2 kWh/(m²·a)	100 mm	1.0 A	68%	polymer-coated steel	30 mm	70 to 2000 mm	n/a	n/a	n/a
E	100	Enthalpy heat exchanger (ERV)	8050121	1 phase, 230 V, 50/60 Hz	100 m³/h	0.4 A	max. 2200 min⁻¹	G4 + F8 (optional F8 activated carbon or H13)	100 mm	polymer-coated steel, 10 mm insulation	31 kg	IP22 (motor IP44)	70%	54 dB(A)	A (scale A+ to G); SEC -40.4 kWh/(m²·a)	n/a	n/a	n/a	n/a	n/a	n/a	700 W	3.6 A	n/a
E	100	Standard heat exchanger	8050503	1 phase, 230 V, 50/60 Hz	100 m³/h	0.4 A	max. 2200 min⁻¹	G4 + F8 (optional F8 activated carbon or H13)	100 mm	polymer-coated steel, 10 mm insulation	31 kg	IP22 (motor IP44)	70%	47 dB(A)	A (scale A+ to G); SEC -41.6 kWh/(m²·a)	n/a	n/a	n/a	n/a	n/a	n/a	700 W	3.6 A	n/a
E	200	Enthalpy heat exchanger (ERV)	8051296	1 phase, 230 V, 50/60 Hz	200 m³/h	n/a	2000 min⁻¹	G4 + F7 (optional H13)	100 mm	polymer-coated steel, 30 mm insulation	55 kg	IP22 (motor IP44)	60%	36 dB(A)	A (scale A+ to G); SEC -35.2 kWh/(m²·a)	n/a	n/a	n/a	n/a	n/a	n/a	650 W	4.0 A	n/a
E1	100	Enthalpy heat exchanger (ERV)	8050954	1 phase, 230 V	100 m³/h	0.4 A	max. 2200 min⁻¹	G4	100 mm	polymer-coated steel, 10 mm insulation	31 kg	IP22 (motor IP44)	70%	54 dB(A)	A (scale A+ to G); SEC -40.4 kWh/(m²·a)	n/a	n/a	n/a	n/a	n/a	n/a	n/a	1.94 A	350 W
E1	100	Standard heat exchanger	8050947	1 phase, 230 V	100 m³/h	0.4 A	max. 2200 min⁻¹	G4	100 mm	polymer-coated steel, 10 mm insulation	31 kg	IP22 (motor IP44)	70%	54 dB(A)	A (scale A+ to G); SEC -41.1 kWh/(m²·a)	n/a	n/a	n/a	n/a	n/a	n/a	n/a	1.94 A	350 W
E1	200	Enthalpy heat exchanger (ERV)	8051777	1 phase, 230 V, 50/60 Hz	200 m³/h	n/a	2000 min⁻¹	G4 + F7 (optional H13)	100 mm	polymer-coated steel, 30 mm insulation	55 kg	IP22 (motor IP44)	60%	36 dB(A)	A (scale A+ to G); SEC -35.2 kWh/(m²·a)	n/a	n/a	n/a	n/a	n/a	n/a	n/a	4.2 A	700 W
E2	100	Enthalpy heat exchanger (ERV)	8050978	1 phase, 230 V	100 m³/h	0.4 A	max. 2200 min⁻¹	G4	100 mm	polymer-coated steel, 10 mm insulation	31 kg	IP22 (motor IP44)	70%	54 dB(A)	A (scale A+ to G); SEC -40.4 kWh/(m²·a)	n/a	n/a	n/a	n/a	n/a	n/a	700 W	5.2 A	350 W
E2	100	Standard heat exchanger	8050961	1 phase, 230 V	100 m³/h	0.4 A	max. 2200 min⁻¹	G4	100 mm	polymer-coated steel, 10 mm insulation	31 kg	IP22 (motor IP44)	70%	47 dB(A)	A (scale A+ to G); SEC -39.7 kWh/(m²·a)	n/a	n/a	n/a	n/a	n/a	n/a	700 W	5.2 A	350 W
E2	200	Enthalpy heat exchanger (ERV)	8051784	1 phase, 230 V, 50/60 Hz	200 m³/h	n/a	2000 min⁻¹	G4 + F7 (H13 optional)	n/a	n/a	55 kg	IP22, motor IP44	60%	36 dB(A)	A (scale A+ to G); SEC -35.2 kWh/(m²·a)	100 mm	n/a	68%	polymer-coated steel	30 mm	70 to 2000 mm	650 W	7.2 A	700 W

Applies to none / 100 / Standard heat exchanger, E / 100 / Standard heat exchanger, E1 / 100 / Standard heat exchanger and E2 / 100 / Standard heat exchanger:

Value according to the manufacturer	Speed 1	Speed 2	Speed 3	Speed 4	Speed 5
Power consumption without heater (W)	20	23	29	37	53
Airflow (m³/h)	30	44	60	75	100
Sound pressure level LpA at 3 m (dB(A))	13	20	27	33	39
Heat recovery efficiency according to EN 13141-8 (%)	98	95	92	90	89

Applies to none / 200 / Enthalpy heat exchanger (ERV) and E2 / 200 / Enthalpy heat exchanger (ERV):

Value according to the manufacturer	Speed 1	Speed 2	Speed 3	Speed 4	Speed 5
Airflow (m³/h)	30	60	90	120	200
Power consumption without heater (W)	10	15	25	44	134
Sound pressure level LpA at 3 m (dB(A))	12	22	30	36	45
Heat recovery efficiency according to EN 13141-8 (%)	85	81	75	68	66

Applies to E / 200 / Enthalpy heat exchanger (ERV) and E1 / 200 / Enthalpy heat exchanger (ERV):

Value according to the manufacturer	Speed 1	Speed 2	Speed 3	Speed 4	Speed 5
Power consumption without heater (W)	10	15	25	44	134
Airflow (m³/h)	30	60	90	120	200
Sound pressure level LpA at 3 m (dB(A))	12	22	30	36	45
Heat recovery efficiency according to EN 13141-8 (%)	85	81	75	68	66

Applies to none / 100 / Enthalpy heat exchanger (ERV), E / 100 / Enthalpy heat exchanger (ERV), E1 / 100 / Enthalpy heat exchanger (ERV) and E2 / 100 / Enthalpy heat exchanger (ERV):

Value according to the manufacturer	Speed 1	Speed 2	Speed 3	Speed 4	Speed 5
Power consumption without heater (W)	20	23	29	37	53
Airflow (m³/h)	30	44	60	75	100
Sound pressure level LpA at 3 m (dB(A))	13	20	27	33	39
Heat recovery efficiency according to EN 13141-8 (%)	96	94	89	85	83

Features

Control panel on the unit, remote control included and control by smartphone or tablet via Wi-Fi with the Blauberg Home app (Android and iOS).
Supply and extract air dampers with automatic actuators prevent draughts when the unit is switched off.
The supply and extract airflows remain completely separate during heat exchange.
EC external rotor motors with forward-curved impeller blades.

Note on variants

Select the heater (code), size and heat exchanger. The article number and technical data of each variant are listed in the table under Technical data; the price depends on the selected variant.
